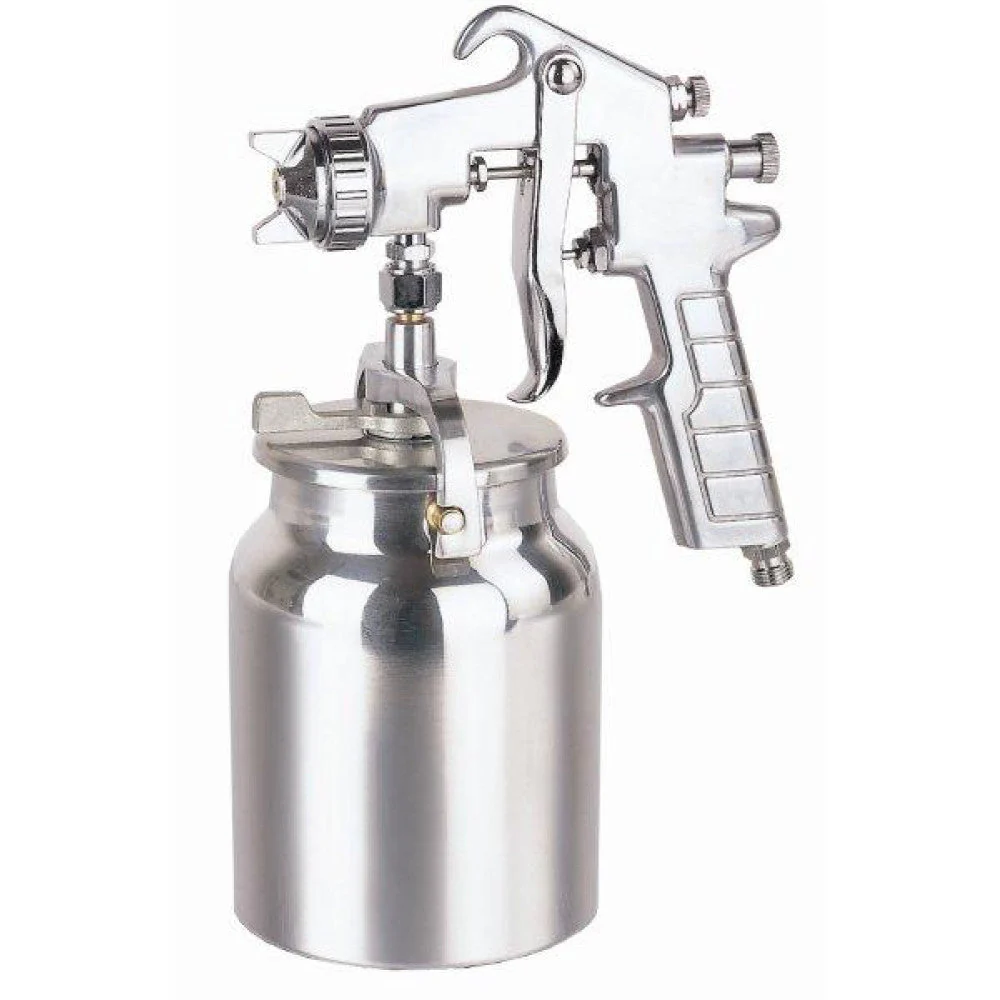

AirCraft | Spray Gun Professional Suction Cup with 2.0mm Nozzle High Pressure

High pressure spray gun - Ø 2.0 mm

• The very first spray guns were high pressure spray guns
• The design mostly relies on air pressure to transfer paint to the surface
• Fully adjustable pattern width making use of a high quality stainless steel fluid tip and needle

Tips and techniques

• When spray finishing, it's always advised to keep the spray gun parallel to the workpiece surface
• The distance from the surface of the workpiece should be the width of the spray pattern
• The lower the pressure of the air, the lower the chance to have bounce-back (overspray).
• The pressure should only be increased when the spray pattern is uneven - paint focused in the middle when the fan setting is wide

Features

• Aluminium suction cup
• Cast aluminium body construction
• Suction feed cup allows for spray gun to placed down without a holder and holds greater capacity compared to a gravity feed spray gun
• Easy spray pattern and fluid control adjustment
• Rotatable aircap to change spray pattern direction
• Stainless steel fluid tip and needle

Specifications

Description	Specification
Working pressure	3.0 - 3.5 Bar
Nozzle	2.0mm
Feed	Suction feed
Pattern width	240mm
Air consumption	283 - 368l/min
Cup capacity	1000ml Aluminium
Air inlet	1/4" BSP
