Axminster Professtional | Belt Sander AP2260BS2 – 230v

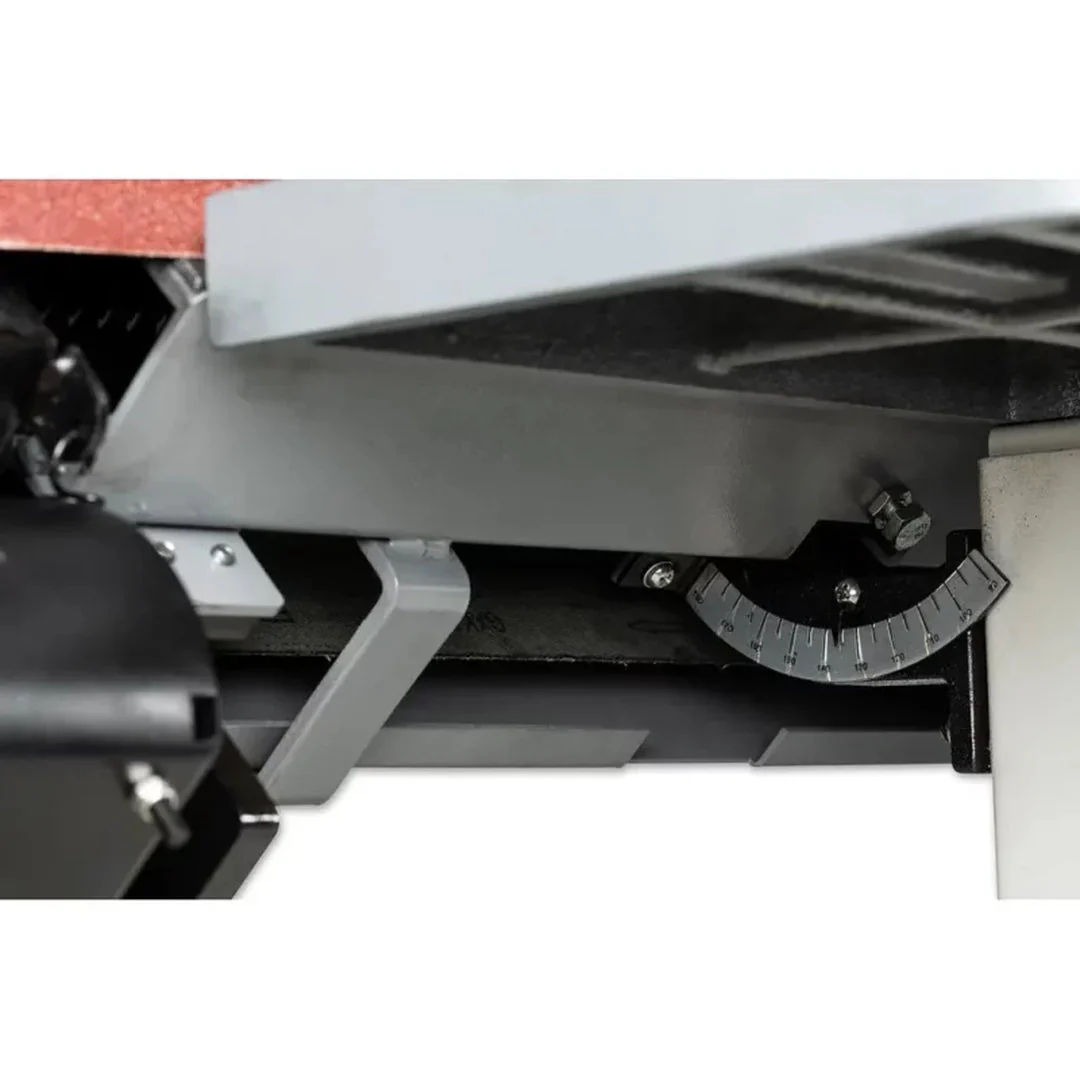

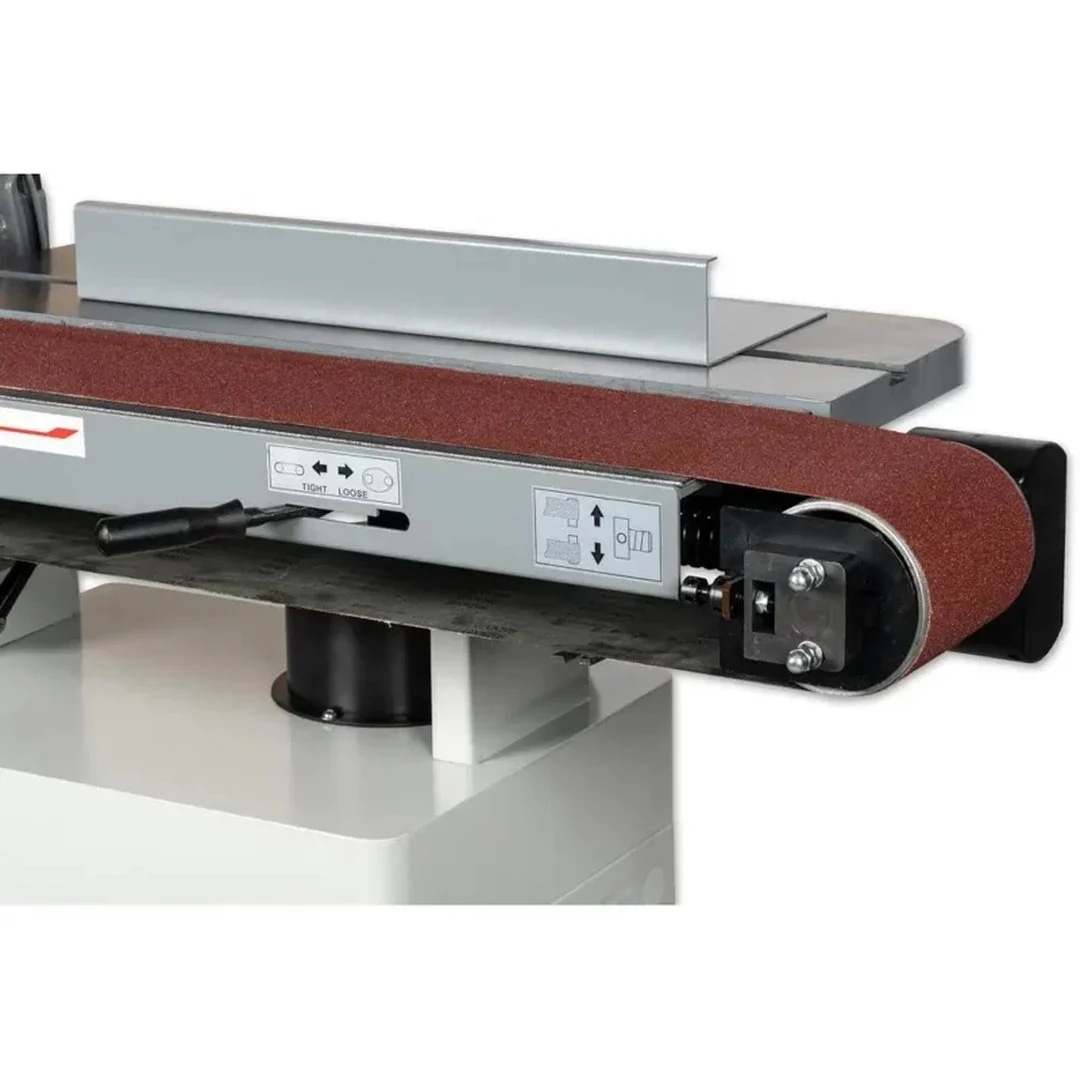

This compact belt sander is a well made and relatively simple machine. With a 2.2kW motor driving a 150mm wide belt, it is one of the most useful machines to have in any woodworking workshop. The belt drive has an automatic oscillating action to provide a scratch-free finish and longer abrasive life. The belt also runs on a graphite anti-friction plate. The whole belt platen can tilt through 90° from vertical to horizontal, the precision ground cast iron table being easily adjusted in two planes to suit. The table has a stanadard 3/4″ x 3/8″ mitre slot to take a mitre fence. The dust hood can be rotated to clear the end of the belt for easy belt changing, and also to allow a small table to be mounted for sanding curved work. The stand is made from thick gauge welded steel and had a very useful belt storage cupboard. Smooth running, quiet in use, a very useful finishing machine. Supplied with a 150mm x 2,260mm 80G abrasive belt fitted.
Key Features
Achieve professional results
The sanding belt oscillates for a scratch-free finish and longer abrasive life.
Easy to use
With rack & pinion table adjustment, it is quick and easy to move the table to where you need it.
Sand at any angle
Whether you need to sand vertically, horizontally or any angle in between, this belt sander is the perfect choice!
Need to carry out curved work?
Thanks to the small sanding table, curved work is a breeze.
Specifications
| Abrasive Belt Size | 150 mm x 2,260 mm |
|---|---|
| Belt Speed | 960 m/min |
| Dust Extraction Outlet | 100 mm |
| EAN Barcode | 5052511124404 |
| Min Extraction Airflow Required | 1,000 m³/hr |
| Model | AP2260BS2, 106707 |
| Nett Weight | 120 kg |
| Overall L x W x H | 1,325 mm x 570 mm x 1,235 mm |
| Power | 2.2 kW |
| Rating | Trade/Professional |
| Sound Pressure Level LpA [Uncertainty K] | 81 dB(A) [3.0 dB] |
| Table Size | 750 mm x 250 mm |
| Table Vertical Travel | 80 mm |
| Voltage | 230 V |
Axminster 3 Year Guarantee
Look for the icon
It’s probably the most comprehensive free guarantee ever – put your trust in Axminster and Hardware Centre!
The right machine
Covered by the Axminster 3 year Guarantee, the product is designed and intended to be used by businesses with occasional periods of continuous work. Must be regularly maintained and serviced annually. Guarantee is void when used for industrial use or as part of a production line.
Keep your receipt
You don’t need to register your new machine to benefit – just keep your proof of purchase.
Free parts & labour
So sure are we of the quality, we cover all parts and labour free of charge for three years.
The 3 year guarantee covers parts and labour providing:
- You have purchased the correct product for your intended purpose in accordance with our classification
- The product is operated correctly
- You have maintained and serviced the product in accordance with the instructions (proof may be required)
The Guarantee does NOT cover:
- Products purchased for use outside our classification advice e.g. Workshop product used for business purposes
- Consumable items e.g., original blades, knives, drive belts or abrasives
- Issues identified due to normal wear and tear, misuse and neglect
- The product has been operated with blunt/incorrect tooling
- The product has been modified
