Bosch | Heat Gun GHG 23-66

Positioning

• High-performance heat gun with total temperature and airflow control to get your jobs done

User benefit

• Precision work via setting option for adjustable temperature, airflow stages and 4 customizable programs (memorized)
• Ideal for work up to temperatures of 650°C
• Long service life due to thermal protection function that switches off the heating although the fan is still running

Product Highlights

• The GHG 23-66 Professional heat gun gives you complete control over temperature and airflow. There are 10 airflow stages to choose from along with digitally adjustable temperature settings by steps of 10°C and four customisable programs that are memorized. These functions are easy to set using the display. This tool easily achieves up to 650°C. What’s more, it has a long service life thanks to the automatic thermal protection function that switches off the heating unit although the fan is still running. It has a convenient cooling stage plus a stable cooling position.

Equipment & Application

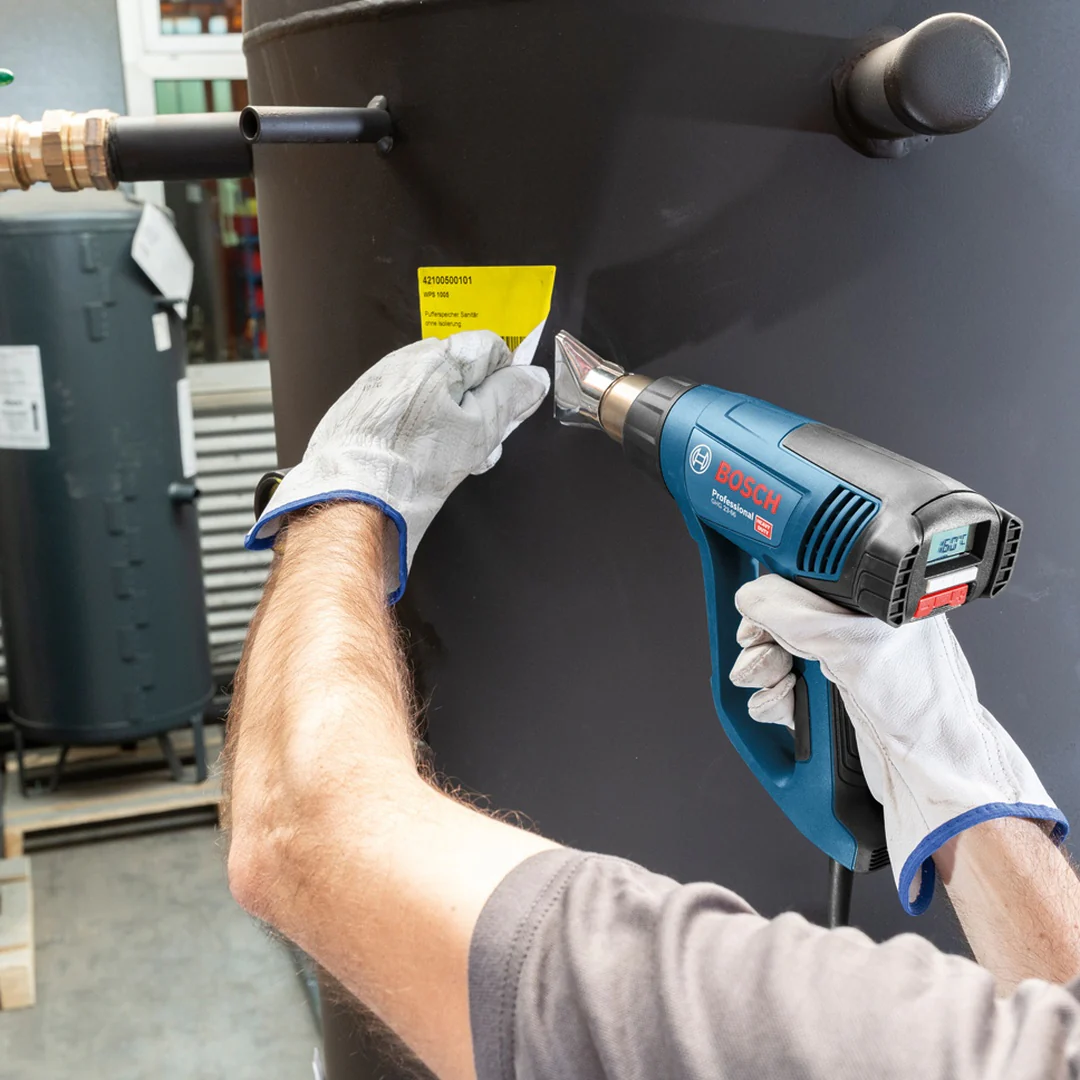

• This heat gun is perfect for a multitude of jobs such as plastic and pipe welding, desoldering, and tube shrinking, especially if you need a specific temperature or airflow for the job at hand.

Technical data

Rated input power	2.300 W
Weight	0,7 kg
Tool dimensions (width)	86 mm
Tool dimensions (length)	245 mm
Tool dimensions (height)	201 mm

Specifications, use

Working temperature	50 – 650 °C
Airflow	150 – 500 l/min
Continuously variable temperature control	✓
Cold stage, 50°C	✓
Control, airflow	continuous

Noise/vibration information

Sound pressure level	65 dB(A)
Sound power level	76 dB(A)
Uncertainty K	3 dB
Noise level	The A-rated noise level of the power tool is typically as follows: Sound pressure level 65 dB(A); Sound power level 76 dB(A). Uncertainty K= 3 dB.

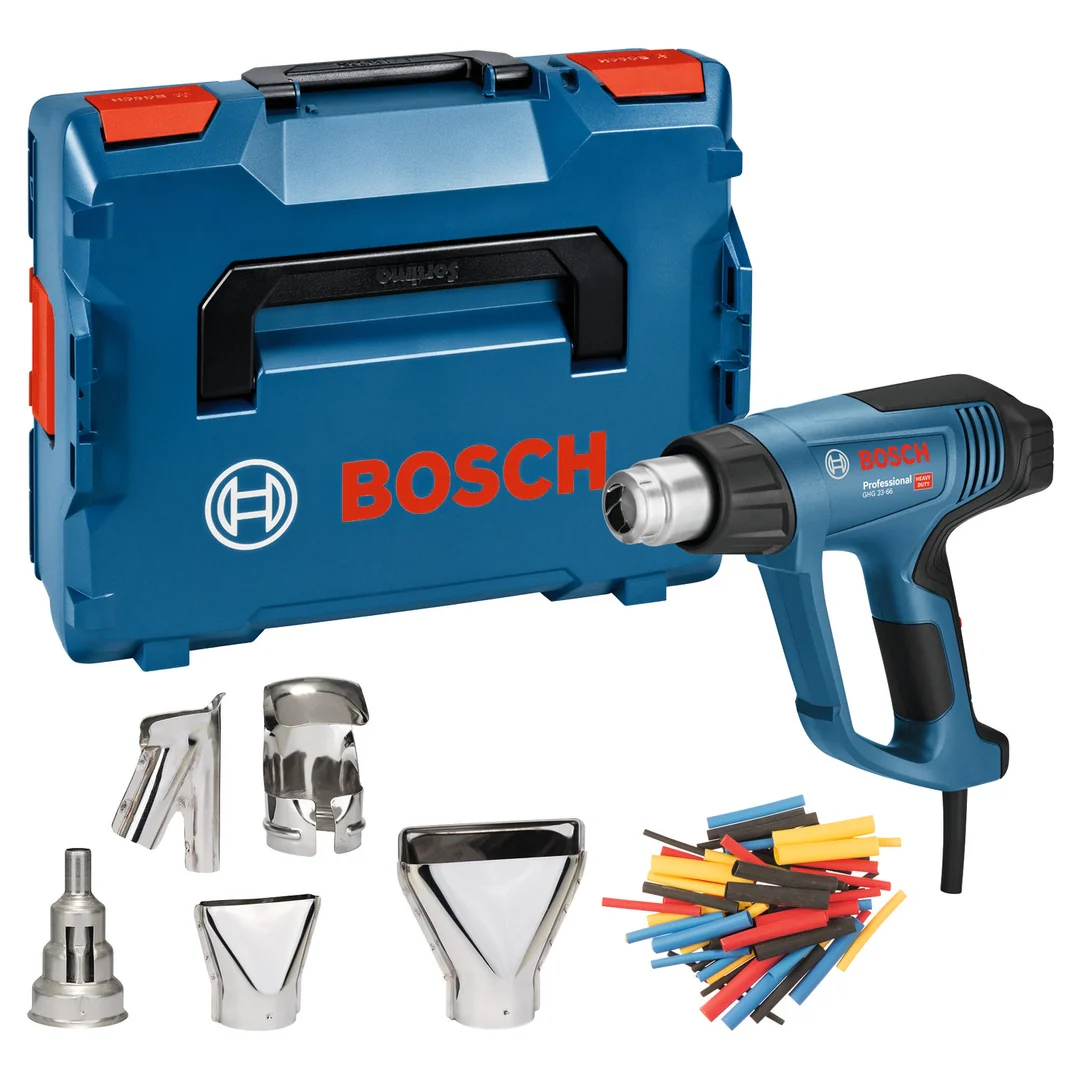

Includes

Glass protection nozzle 75 mm PHG-N3 1 609 390 452	✓
Heat shrink tubing set 1 609 201 812	✓
L-BOXX 136 1 600 A01 2G0	✓
Reduction nozzle, 9 mm 1 609 201 797	✓
Reflector nozzle, 32 x 33 mm 1 609 390 453	✓
Surface nozzle 50 mm 1 609 201 795	✓
Welding shoe, 10 mm 1 609 201 798	✓
