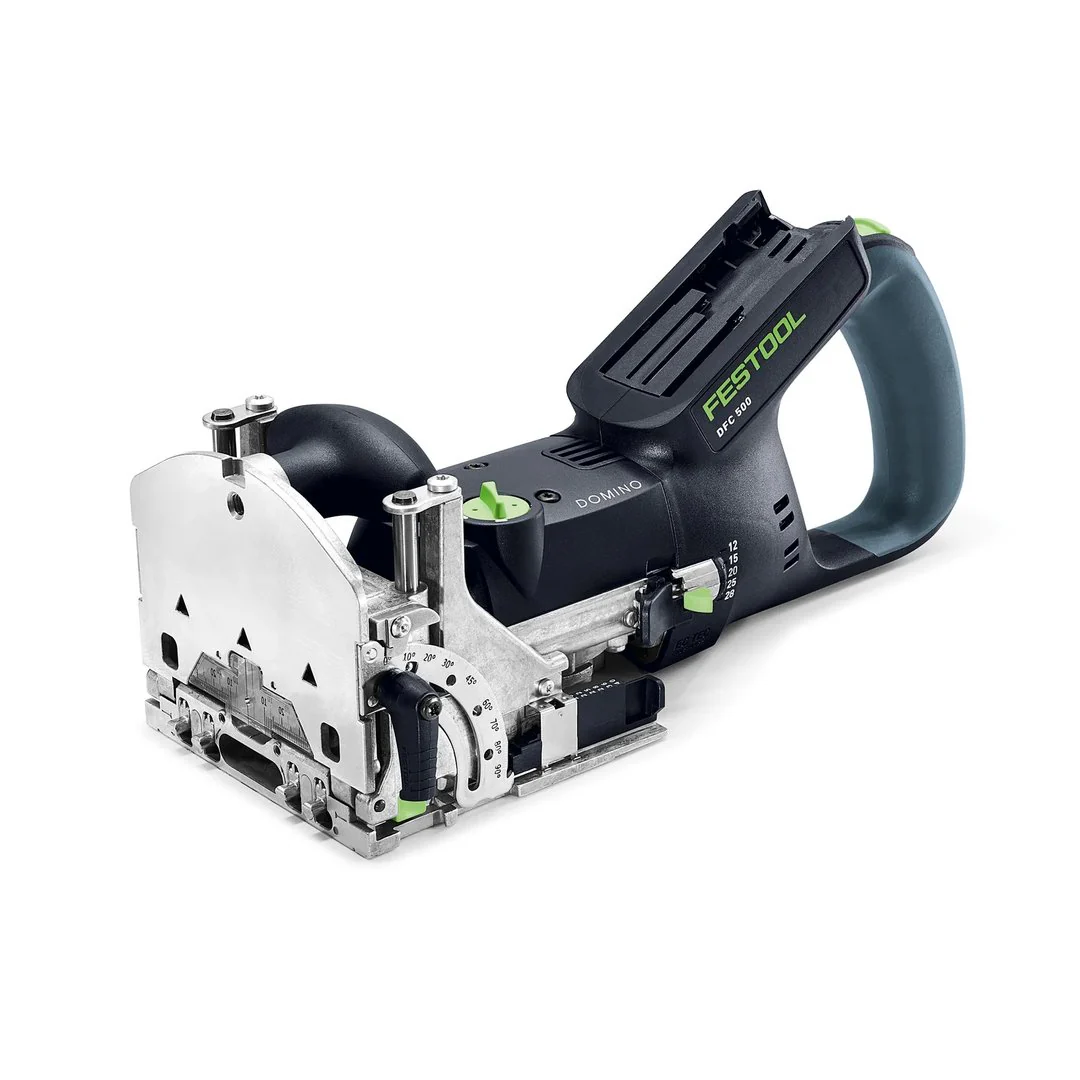

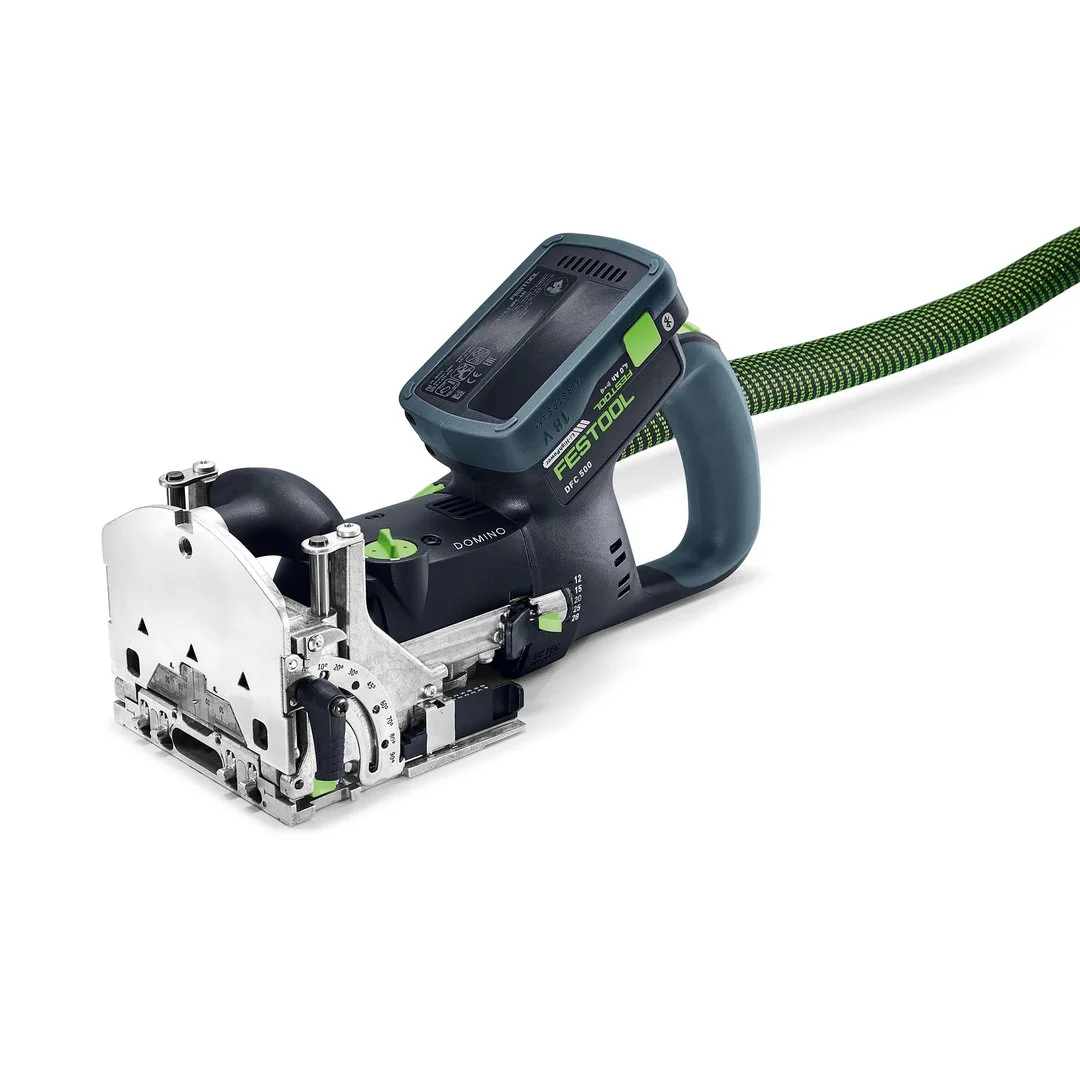

Festool | Cordless Joining Machine DFC500 E-BASIC

FESTOOL. Our passion for high-quality power tools has continued for more than 100 years. We share this fascination with our users and fans. Our products make life easier for professional tradespeople – and help them to achieve perfect results faster.

Connect with precision, stability, and versatility: the cordless DOMINO.

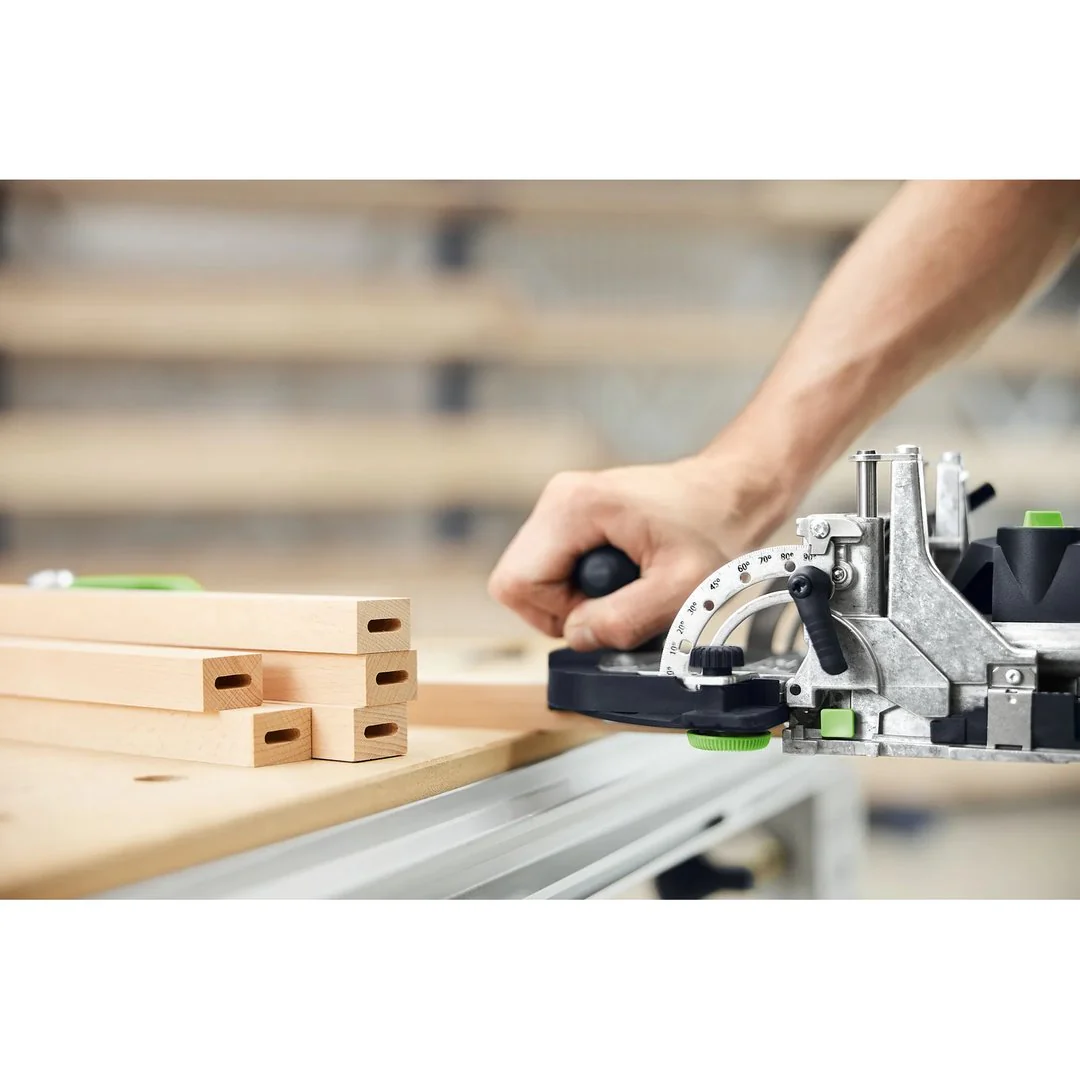

Every wooden joint has its perks. The DOMINO jointing system, which includes a cordless joining machine and DOMINO dowels, brings them all together. The unique pendulum routing motion of the DOMINO creates precise, twist-proof elongated holes. The DOMINO dowel combines the strength of slotted and tenon joints with the flexibility of flat dowels. It's perfect for both delicate and sturdy pieces in the home and outdoors. Plus, the cordless version with its comfy spade handle gives you extra ease without any cables to worry about.

• Independent: 100% mobile with battery – whether you're in the workshop or on-site.
• Ergonomic: Work without fatigue thanks to the comfy handle.
• Precise: One-of-a-kind pendulum milling principle for accurate, effortless work.
• Quick and easy: Built-in stop pins for repeating dowel placement.
• Stable: Super stable and twist-proof joints thanks to the unique shape of the DOMINO dowel.
• Versatile: DOMINO plugs come in various sizes from 4 x 20 mm to 10 x 50 mm and in two types of wood for indoor and outdoor use.
• Sorted: The routing depths are just right for the dowel lengths and panel materials.
• Flexible: The DOMINO core connectors and furniture fittings let you create sturdy furniture setups that can be taken apart again.
• System: Accessories are a perfect fit for the whole DOMINO system.

Performance features

Antistatic function

Mobile dust extractors and tools with the antistatic function to prevent static charge from accumulating when working.

CLEANTEC

Integrated bayonet fitting as the connecting element between the extractor and the tool.

FastFix

Makes changing routing, sawing, planing, sanding, drilling and screwdriving tools easier.

Electronic

Speed control for adjusting to all types of materials.

Main applications

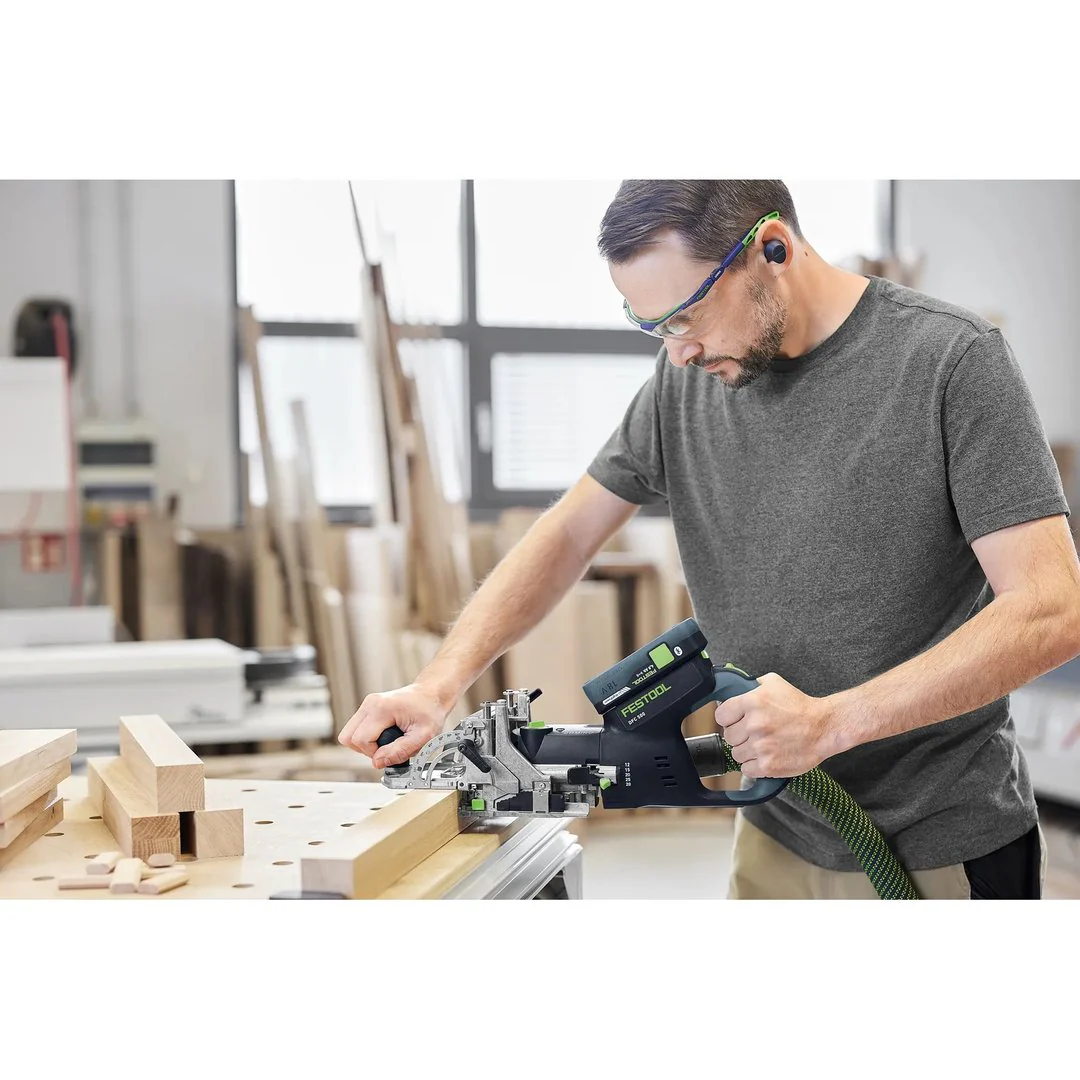

• Frames and frame joints in solid wood

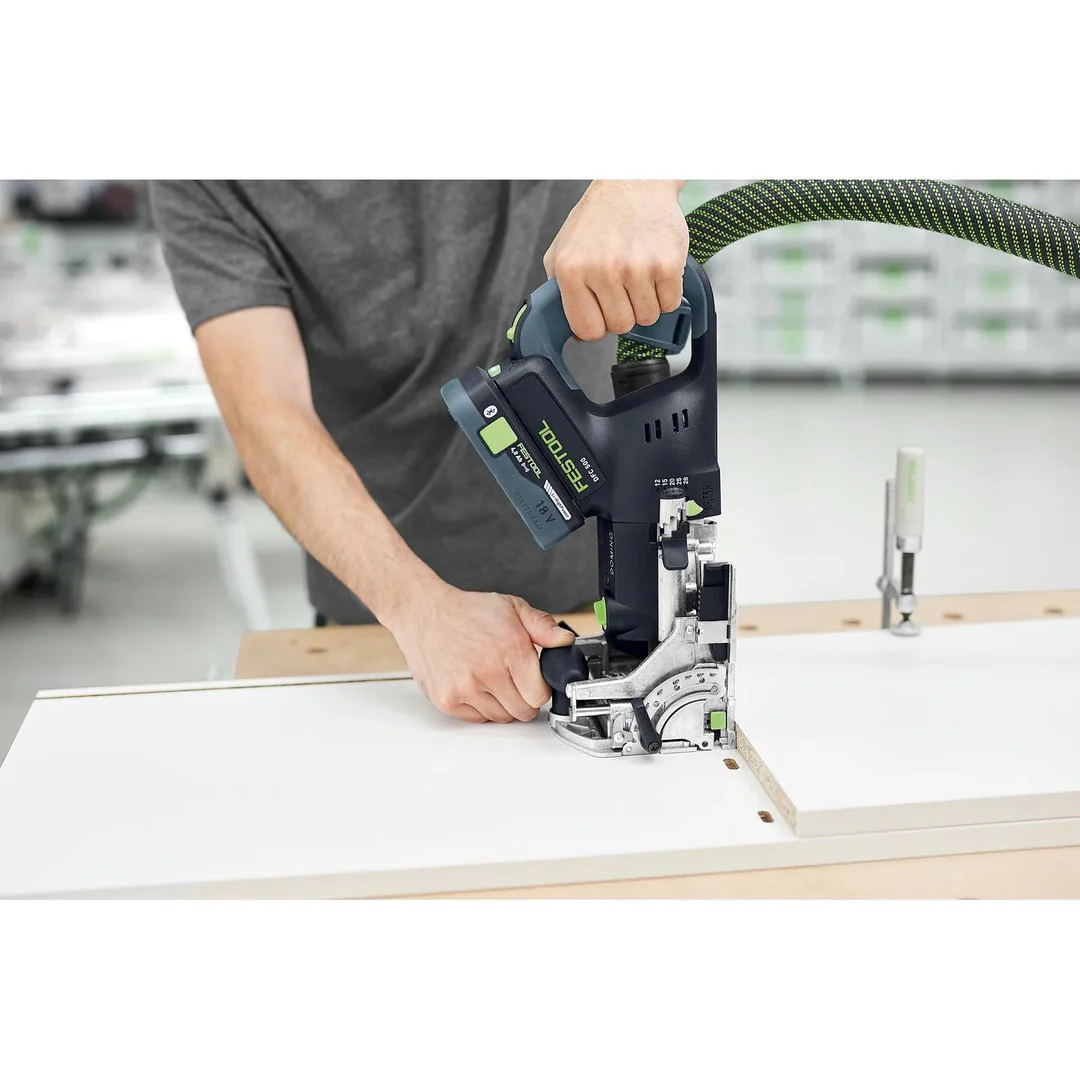

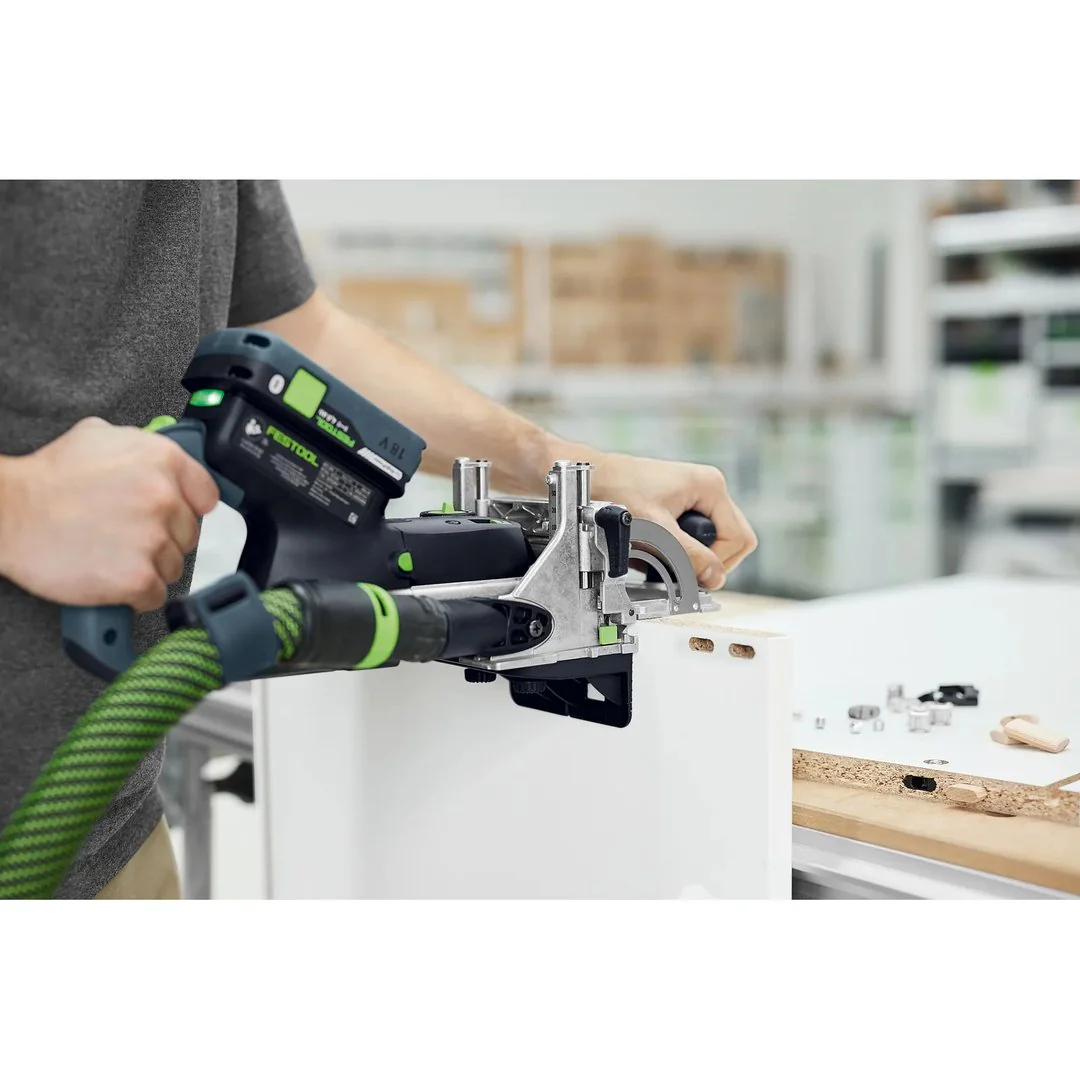

• Panel joints in various types of panel materials
• Twist-proof connections, even with small cross sections
• Creation of stable mitre joints
• Easy-to-remove corner connectors with the DOMINO connectors
• Joining thin bits from 12 mm up

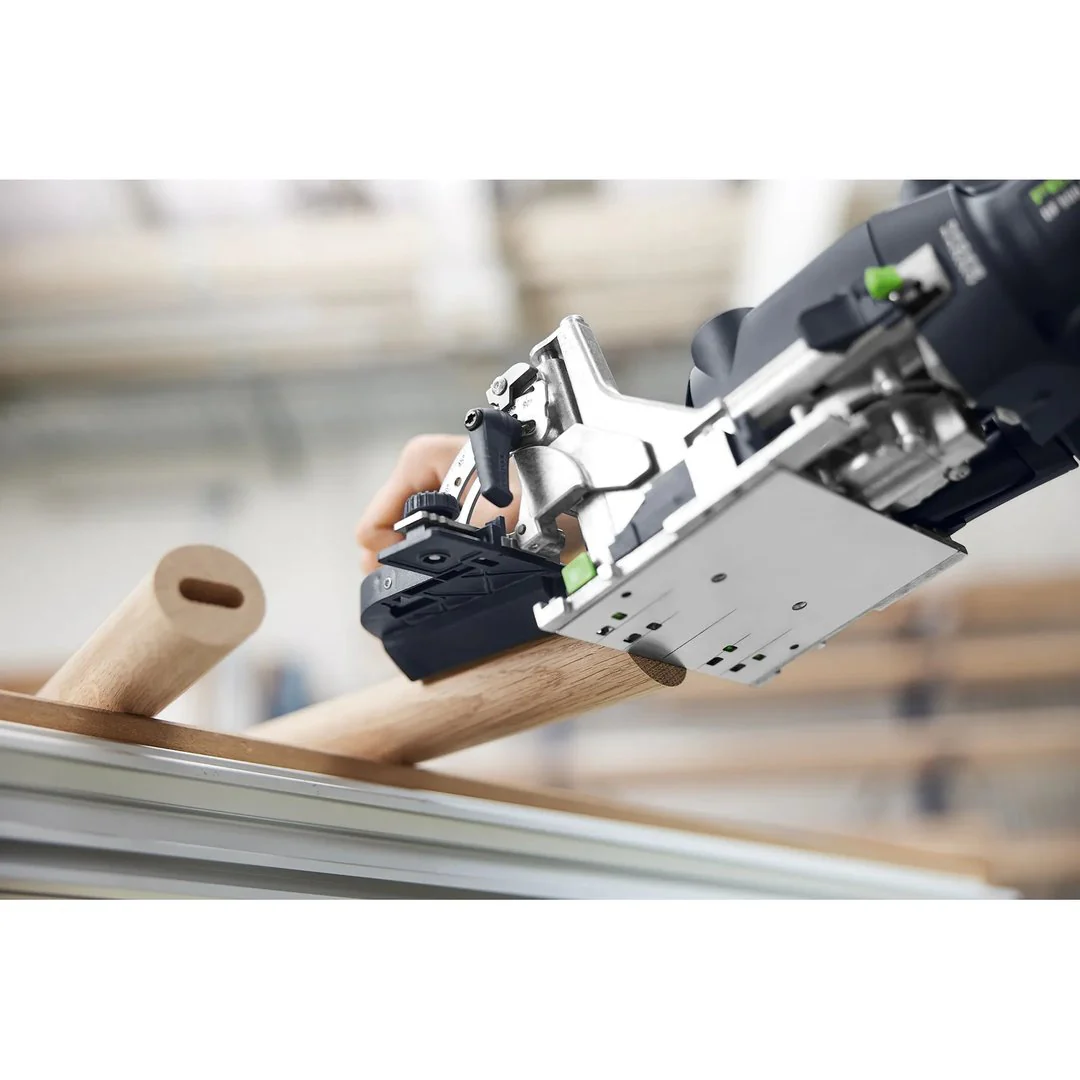

• Round profile connection with the handrail fence

Technical data

Idle engine speed	18 500 min⁻¹
Depth stop for routing depth	12, 15, 20, 25, 28 mm
Max. routing depth	28.00 mm
DOMINO groove cutter diameter	4, 5, 6, 8, 10 mm
Routing height adjustment	5 - 30 mm
Mitre routing	0 - 90 °
Dust extraction connection diameter	27 mm
Drive type	Battery
Product weight without accessories	3.40 kg
Transport weight incl. accessories	6.00 kg
Battery voltage (rated voltage)	18 V

Noise and vibration values

Routing: Uncertainty (vibration) K	1.50 m/s²
Routing: Uncertainty (noise) K	1.50 dB
Routing: Total vibration average, Ah	2.50 m/s²
Routing: Standards series EN	60745-2-19
Routing: A-weighted sound pressure level, LpA	87.00 dB(A)
Routing: A-weighted sound power level, LWA	98.00 dB(A)

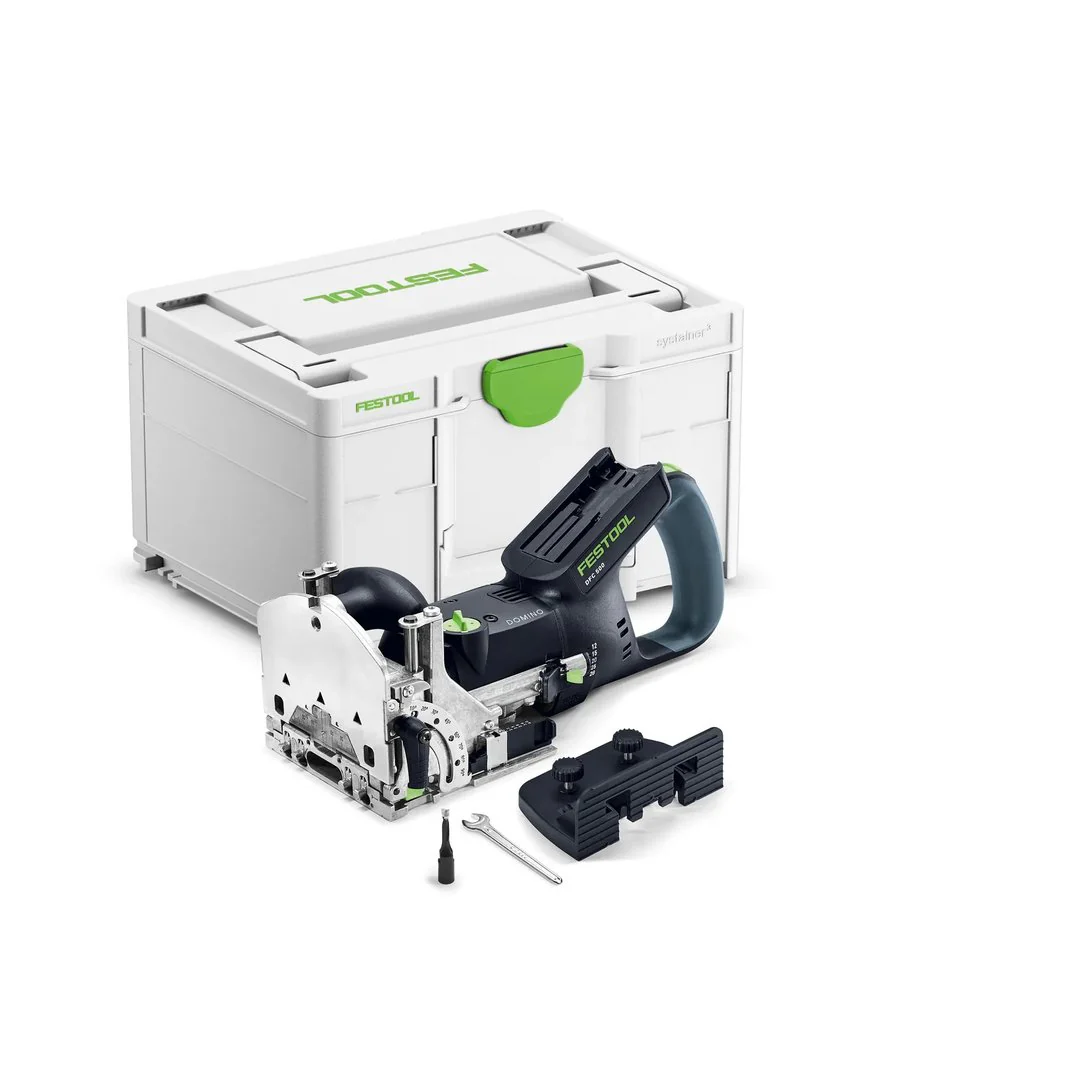

Items Included

• DOMINO router D 5-NL 20 HW-DF 500
• Additional stop ZA-DF 500/700
• open ended spanner, WAF 8
• Systainer³ SYS3 M 237
