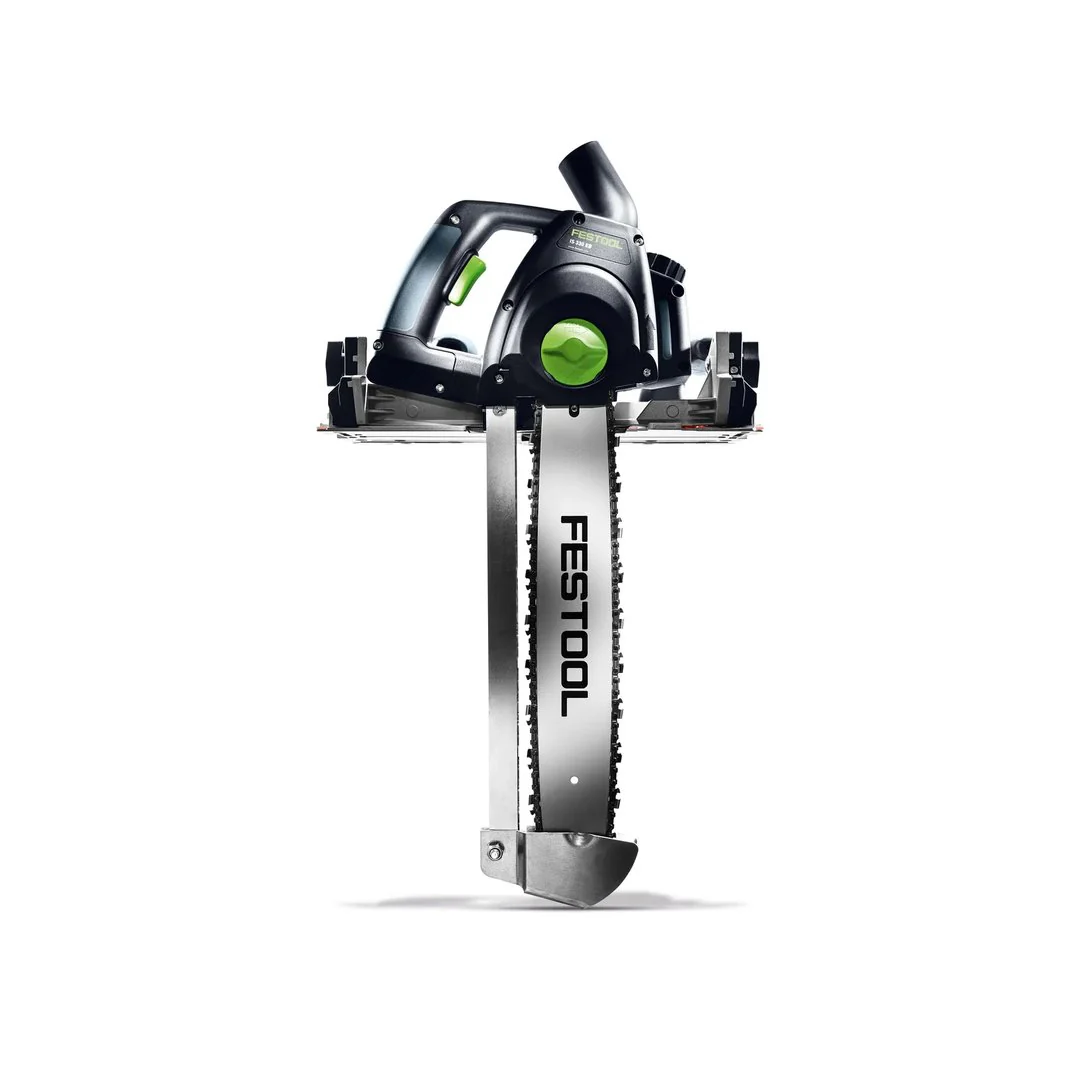

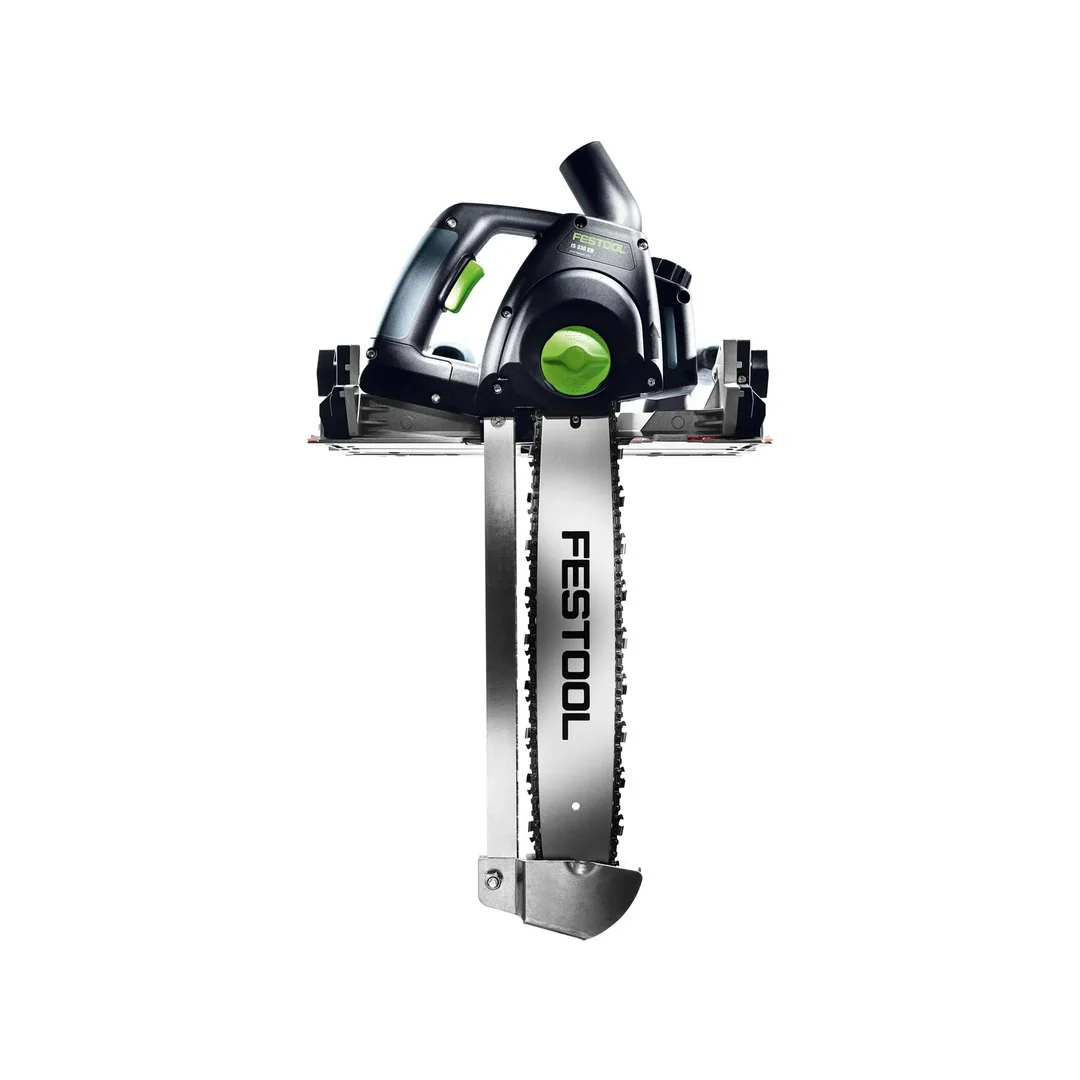

Festool | Sword Saw IS330 EB
FESTOOL. Our passion for high-quality power tools has continued for more than 100 years. We share this fascination with our users and fans. Our products make life easier for professional tradespeople – and help them to achieve perfect results faster.
The size with 330 mm cutting depth.

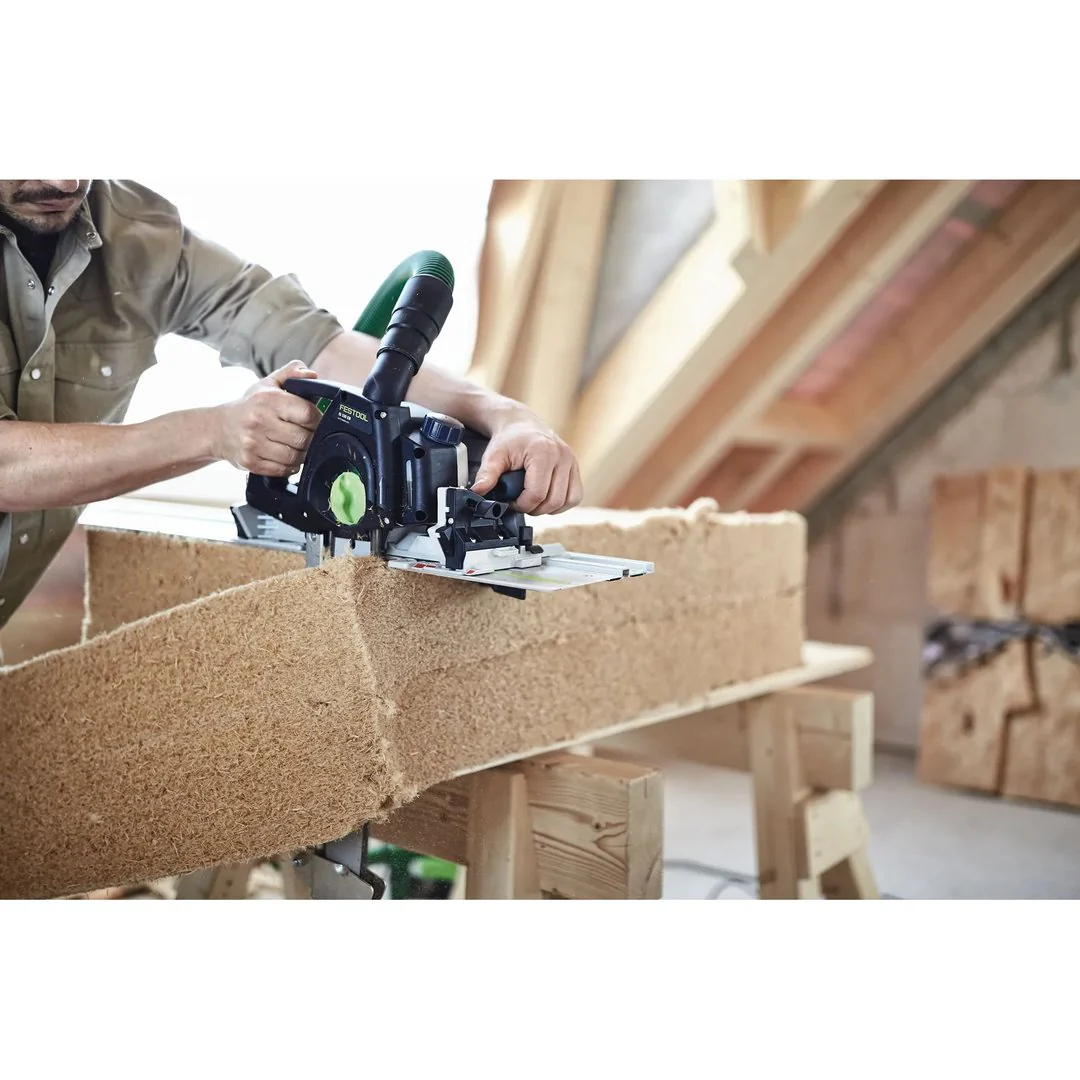

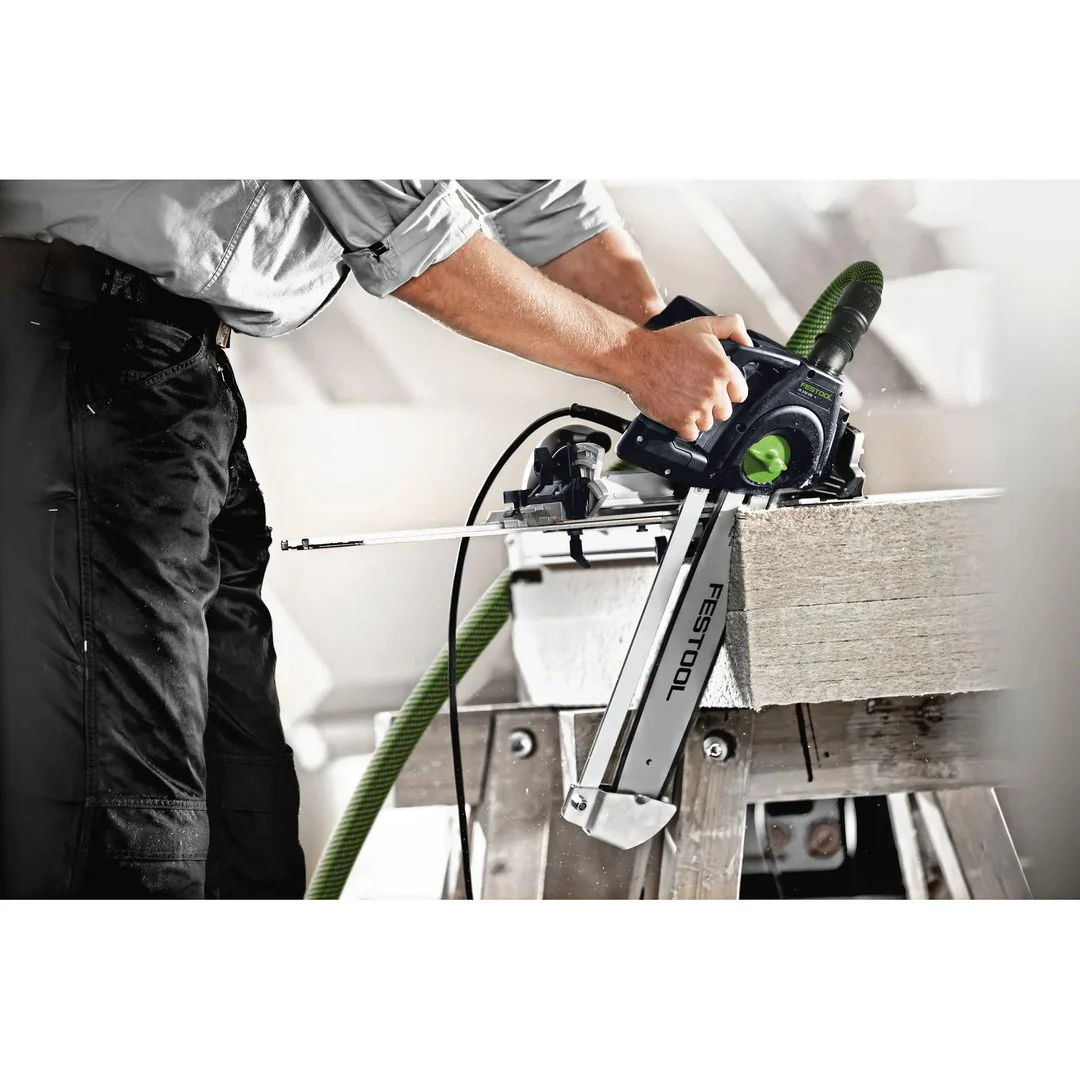

The specialist for cutting insulating materials. The IS 330 sword saw combines the advantages of a chain saw and a portable circular saw in a unique mobile system with a 330 mm cutting depth. Cutting pressure-resistant insulating materials such as wood fibre and PU boards is this easy, quick and accurate thanks to the guide rail.
- Ideal for construction sites: cutting depth of 330 mm for cutting thick insulating materials to size and 7.0 kg in weight
- 60° mitre cutting angle with a cutting depth of 165 mm
- Straight and splinter-free cuts thanks to guide rails
- Rotary dust-extraction attachment for connecting an extractor
- Chain changed and tensioned without using tools
- Drawing cut for rapid, jolt-free operation and an outstanding cutting quality
- Not suitable for wood
Performance features
Guide systemPatented guide system for safe guidance of saws and router bits.
Electronic overload protectionProtects the motor with blocking tool.
Electronic monitoring of the winding temperatureElectronic monitoring of the coil temperature protects against damage to the motor.
Starting current limiterSimple start for household fuses.
Standard connection for dust extractorsStandard connection for dust extractors.
Electro-dynamic run-down brakeThe chainsaw will stop immediately once the speed controller is released.
Main applications
- Cutting pressure-resistant insulating materials such as wood fibres, PUR or EPP, etc. to size
Technical data
| Power consumption | 1 600 W |
| Idle engine speed | 4 600 min⁻¹ |
| Cutting depth 0°, 90°/45°/60° | 330/230/165 mm |
| Mitre cuts | 0 - 60 ° |
| Cutting speed (idling) | 12.00 m/s |
| Blade position | 0 - 10 ° |
| Dust extraction connection diameter | 27/36 mm |
| Drive type | Mains |
| Product weight without accessories | 7.10 kg |
| Transport weight incl. accessories | 10.23 kg |
| Cable length | 7.00 m |
Noise and vibration values
| Sawing: Total vibration average, Ah | 3.00 m/s² |
| Sawing: Uncertainty (vibration) K | 1.50 m/s² |
| Sawing: A-weighted sound power level, LWA | 102.00 dB(A) |
| Sawing: Standards series EN | 62841 |
| Sawing: Uncertainty (noise) K | 3.00 dB |
| Sawing: A-weighted sound pressure level, LpA | 91.00 dB(A) |

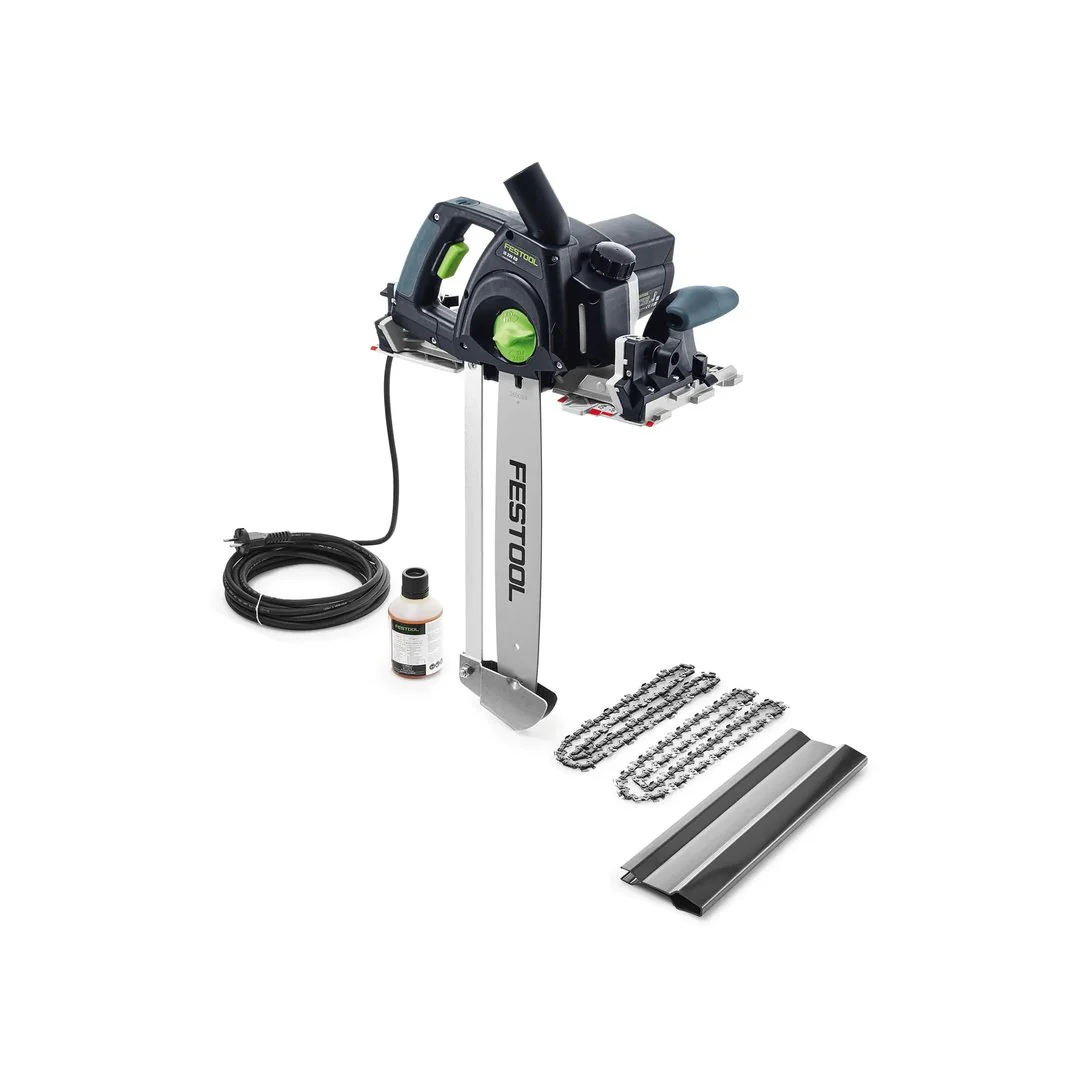

Items Included
- Chainsaw chain SC 3/8"-90 I-57E
- Chainsaw chain SC 3/8"-91 IH-57E
- chain oil 250 ml
- 7.5 m power cord
- protective cover
