Festool | Worktop template APS 900/2
FESTOOL. Our passion for high-quality power tools has continued for more than 90 years. We share this fascination with our users and fans. Our products make life easier for professional tradespeople – and help them to achieve perfect results faster.
Precise joining.

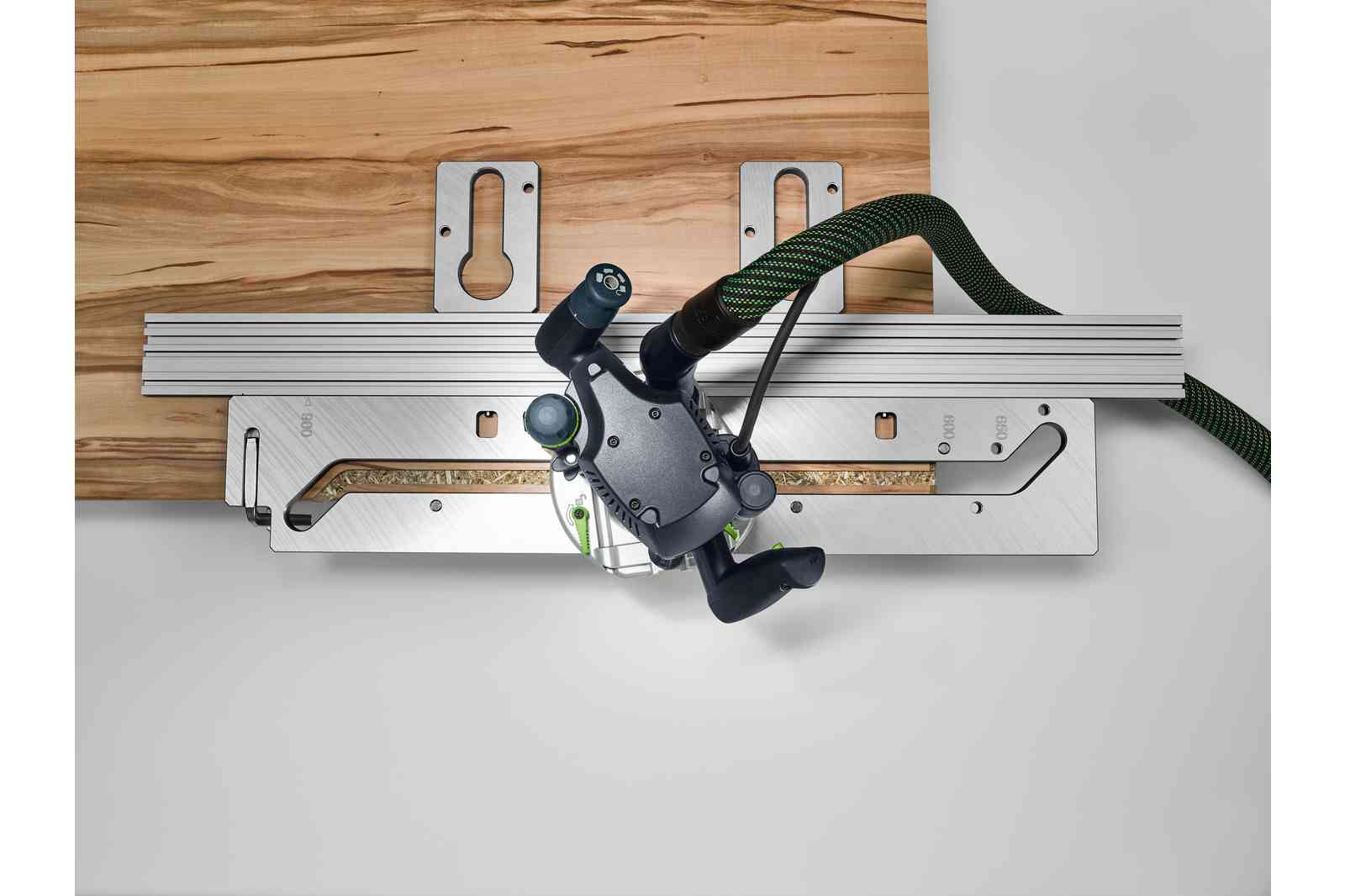

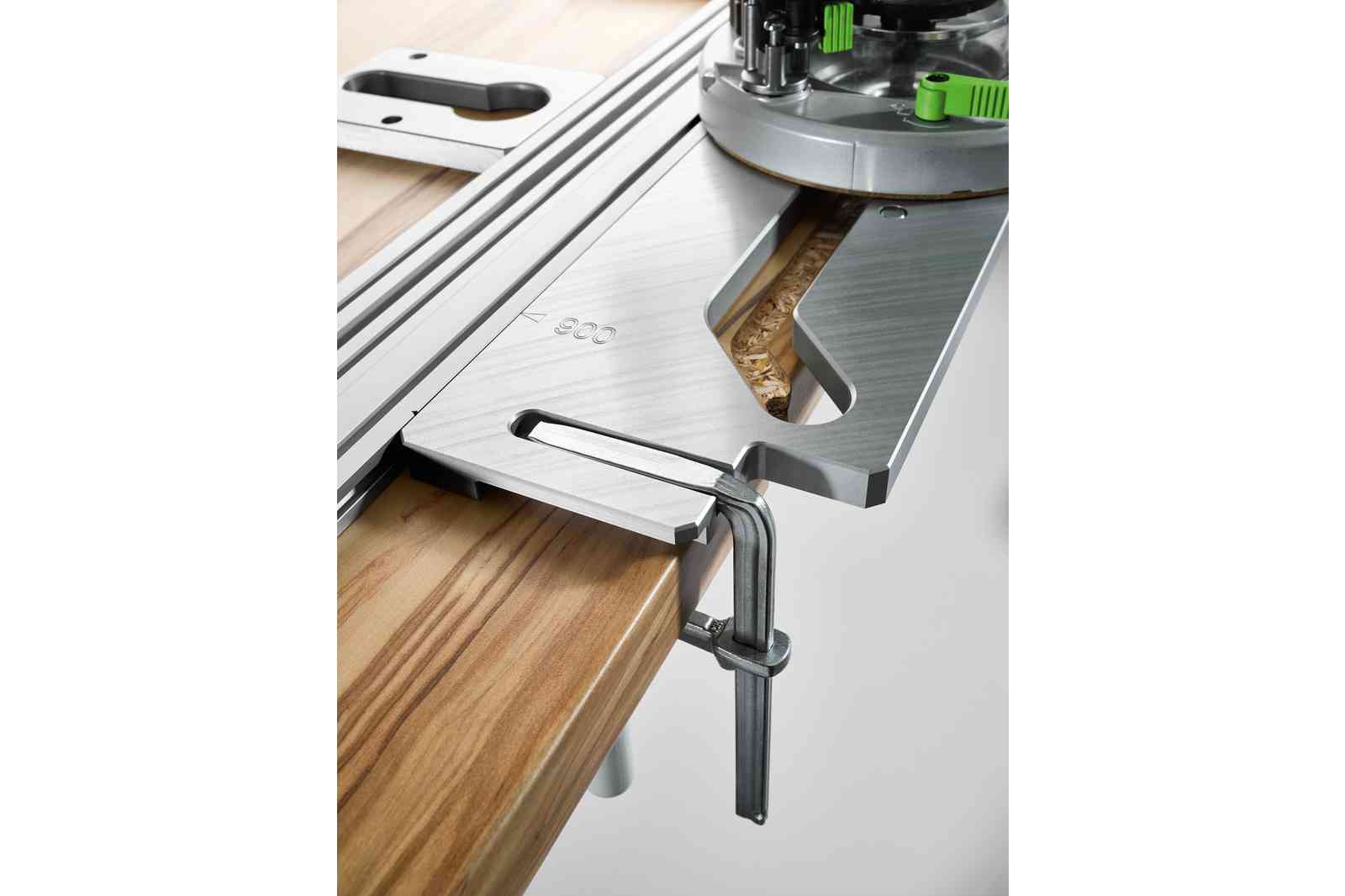

The APS worktop template makes flush connections of wooden panels at a 90° angle simple. The template is permanently fixed to the integrated clamp and thus enables precise results – even when the router passes several times along a single groove.

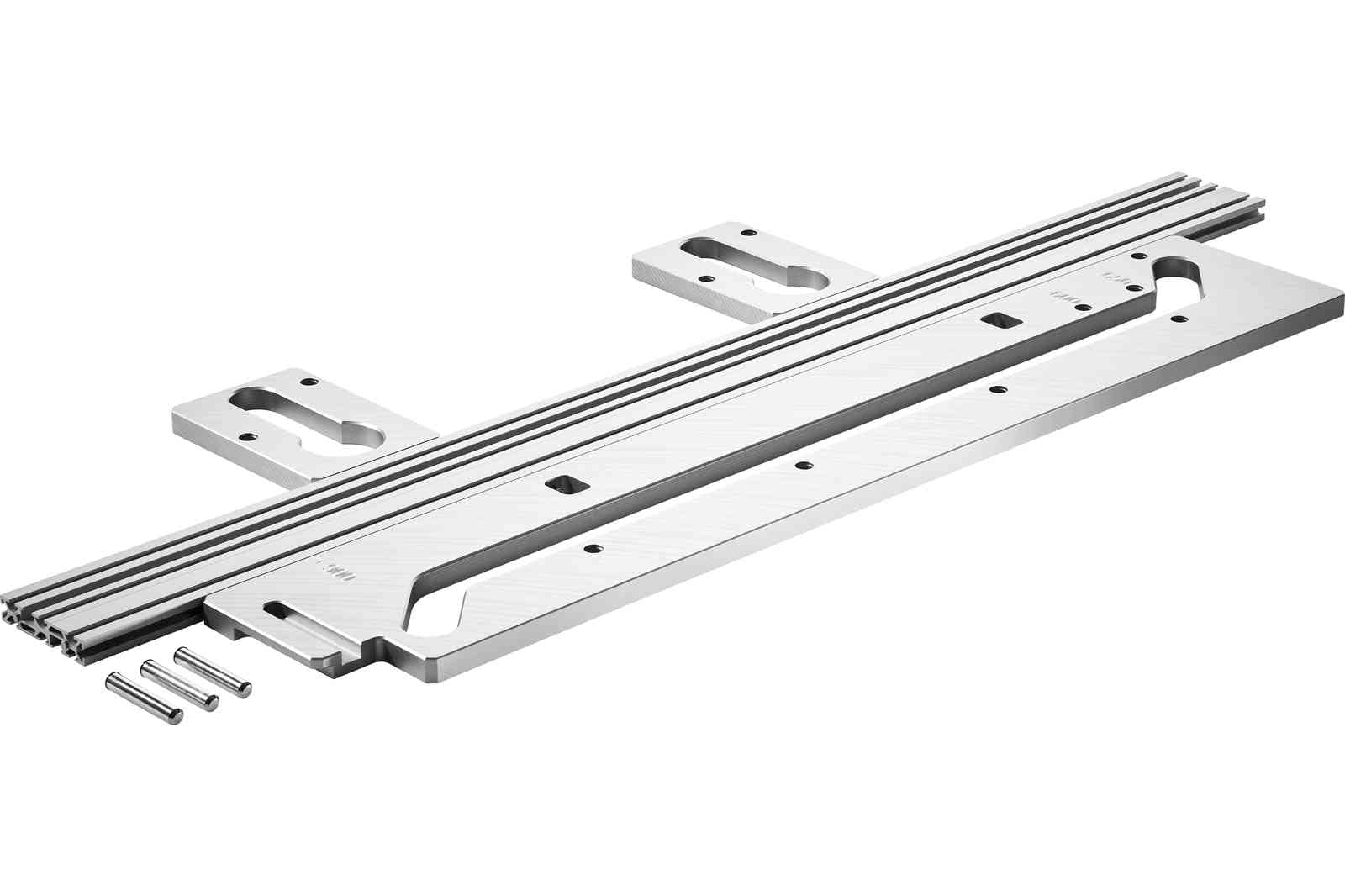

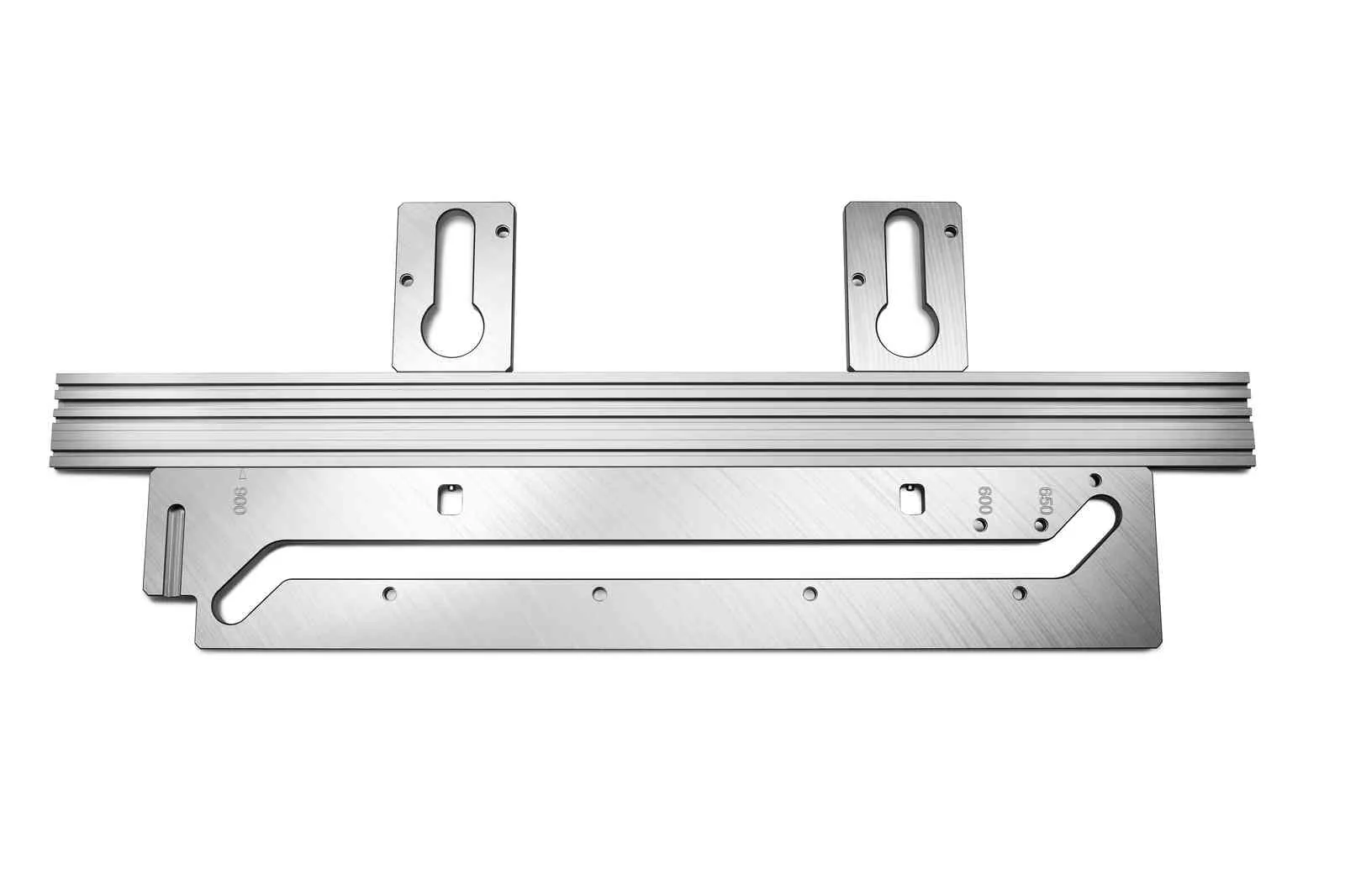

- Robust routing template made from aluminium
- For corner and panel joints with fixed fence with panel depths of 600 and 650mm or, if moved, up to 900mm
- Additionally with two routing templates that can be freely positioned for making recesses for conventional fittings on the underside of panels
- Panel depths greater than 900mm also possible using extension profiles
- For groove cutters with 14mm diameter and copying rings with 30mm diameter, recommended for OF 2200/1400 router
- for diameter of cutter 14mm and copying ring 30mm
Usage
- For panel joins
Specifications
-
Panel depth with corner joints, with adjustment: 900mm
-
For worktop connectors, bolt length: 65/150mm
-
Panel depth with corner joints, without adjustment: 600/650mm
-
Dimensions (L x W x H): 1000X380X16mm
Included

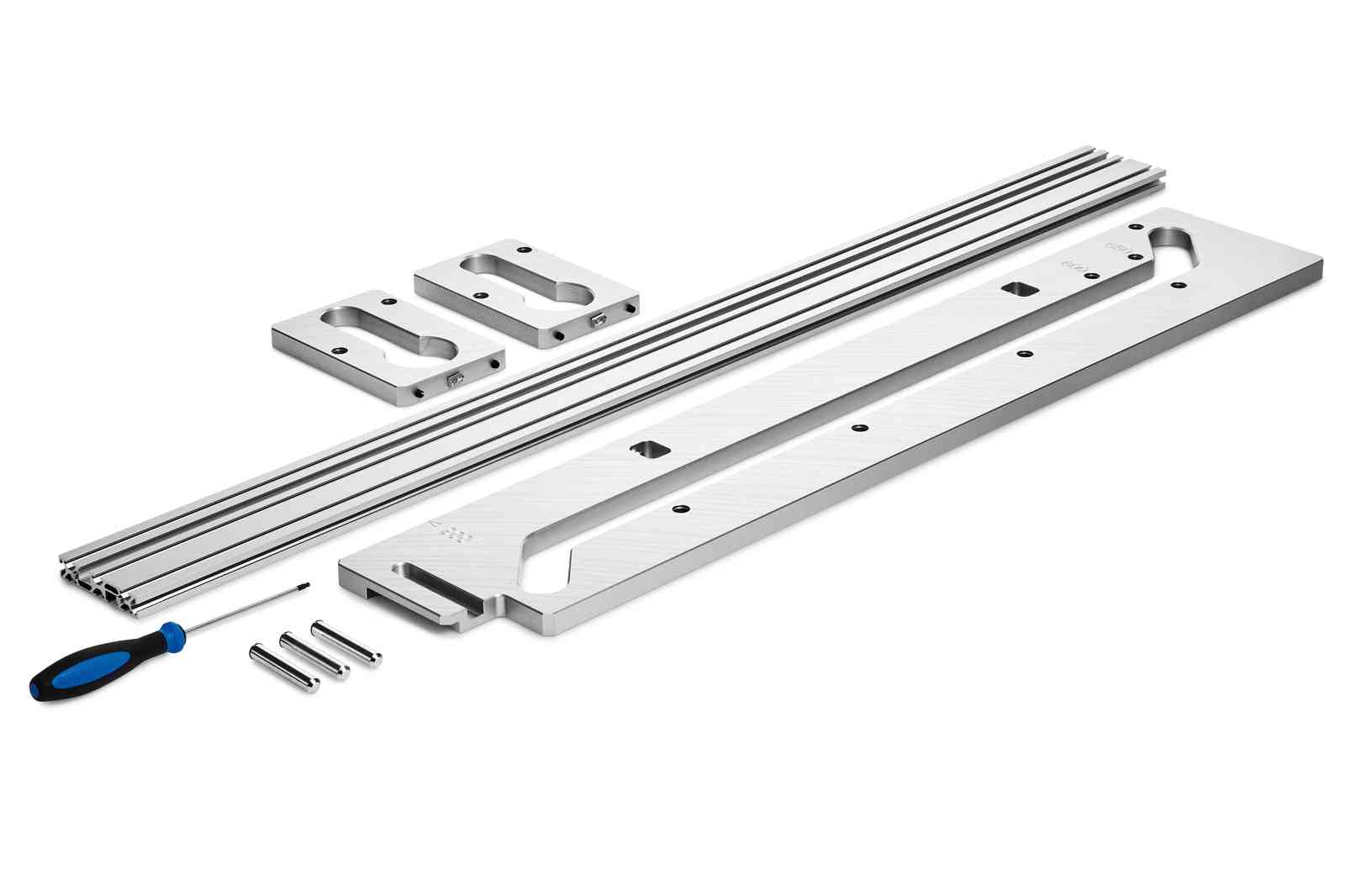

- Corner connection template
- Profile MFS-VP 1000
- 3x Bolt
- Screwdriver
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
FESTOOL. Our passion for high-quality power tools has continued for more than 90 years. We share this fascination with our users and fans. Our products make life easier for professional tradespeople – and help them to achieve perfect results faster.
Precise joining.
The APS worktop template makes flush connections of wooden panels at a 90° angle simple. The template is permanently fixed to the integrated clamp and thus enables precise results – even when the router passes several times along a single groove.
- Robust routing template made from aluminium
- For corner and panel joints with fixed fence with panel depths of 600 and 650mm or, if moved, up to 900mm
- Additionally with two routing templates that can be freely positioned for making recesses for conventional fittings on the underside of panels
- Panel depths greater than 900mm also possible using extension profiles
- For groove cutters with 14mm diameter and copying rings with 30mm diameter, recommended for OF 2200/1400 router
- for diameter of cutter 14mm and copying ring 30mm
Usage
- For panel joins
Specifications
-
Panel depth with corner joints, with adjustment: 900mm
-
For worktop connectors, bolt length: 65/150mm
-
Panel depth with corner joints, without adjustment: 600/650mm
-
Dimensions (L x W x H): 1000X380X16mm
Included
- Corner connection template
- Profile MFS-VP 1000
- 3x Bolt
- Screwdriver
