Knipex | Plier Diagonal Cut: 1- 15mm

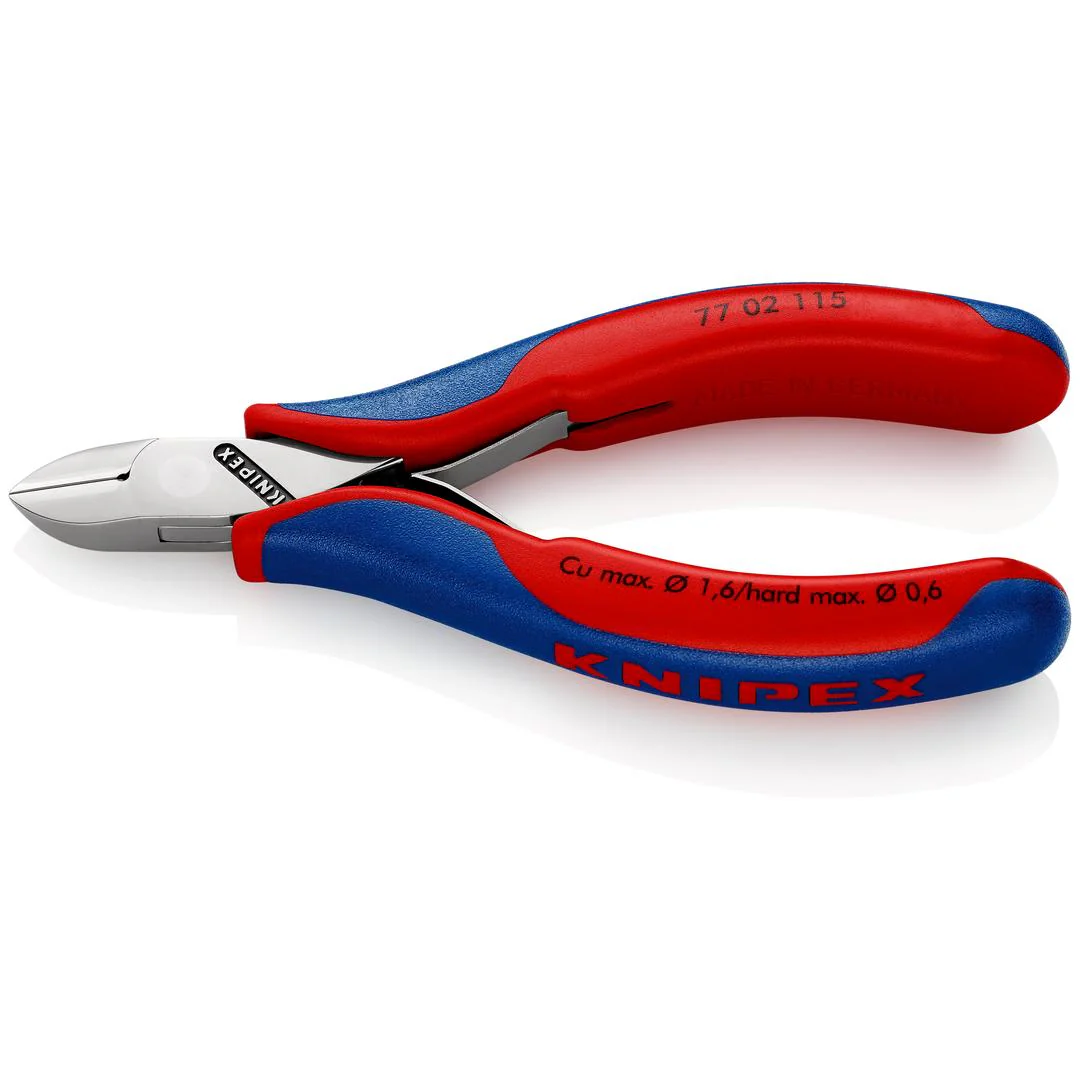

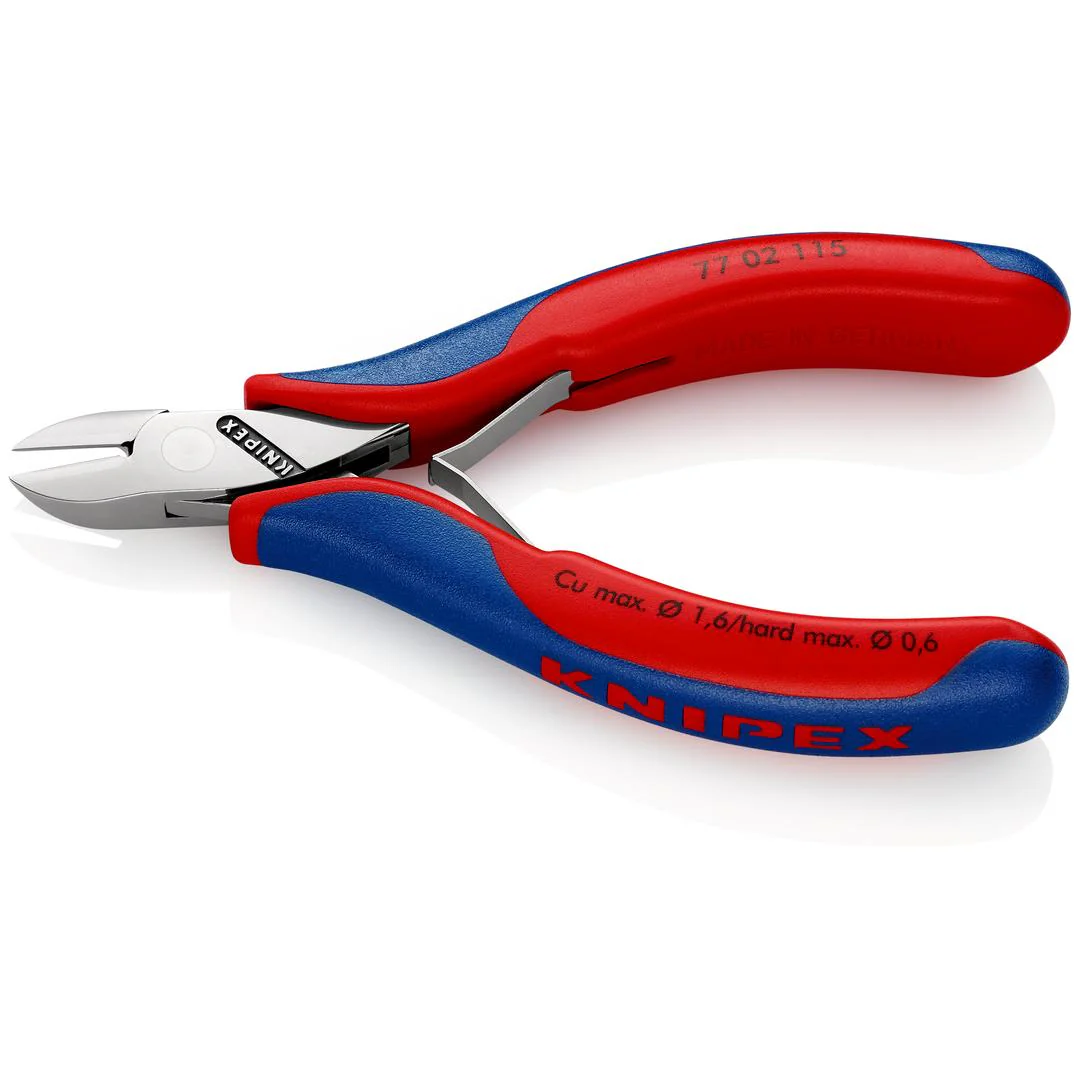

77 02 115 SB Electronics Diagonal Cutter
Durable, load-optimised design with backlash-free box joint. High, slim sleeves for fine and comfortable gripping between thumb and index finger. Less physical effort due to very high transmission ratio. Load-optimised for a more direct feel when working. Low-friction double spring for smooth and even opening. The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools. Cutters additionally laser hardened, cutter hardness at least 62 HRC. round head, with small bevel.
- Cutting capacities medium hard wire (diameter): Ø 1.2 mm
- Cutting capacities hard wire (diameter): Ø 0.6 mm
- Cutting capacities soft wire (diameter): Ø 0.3 – 1.6 mm
- Jaw length (B): 14 mm
- Jaw thickness (joint) (D): 7.5 mm
- Head width (A): 11 mm
