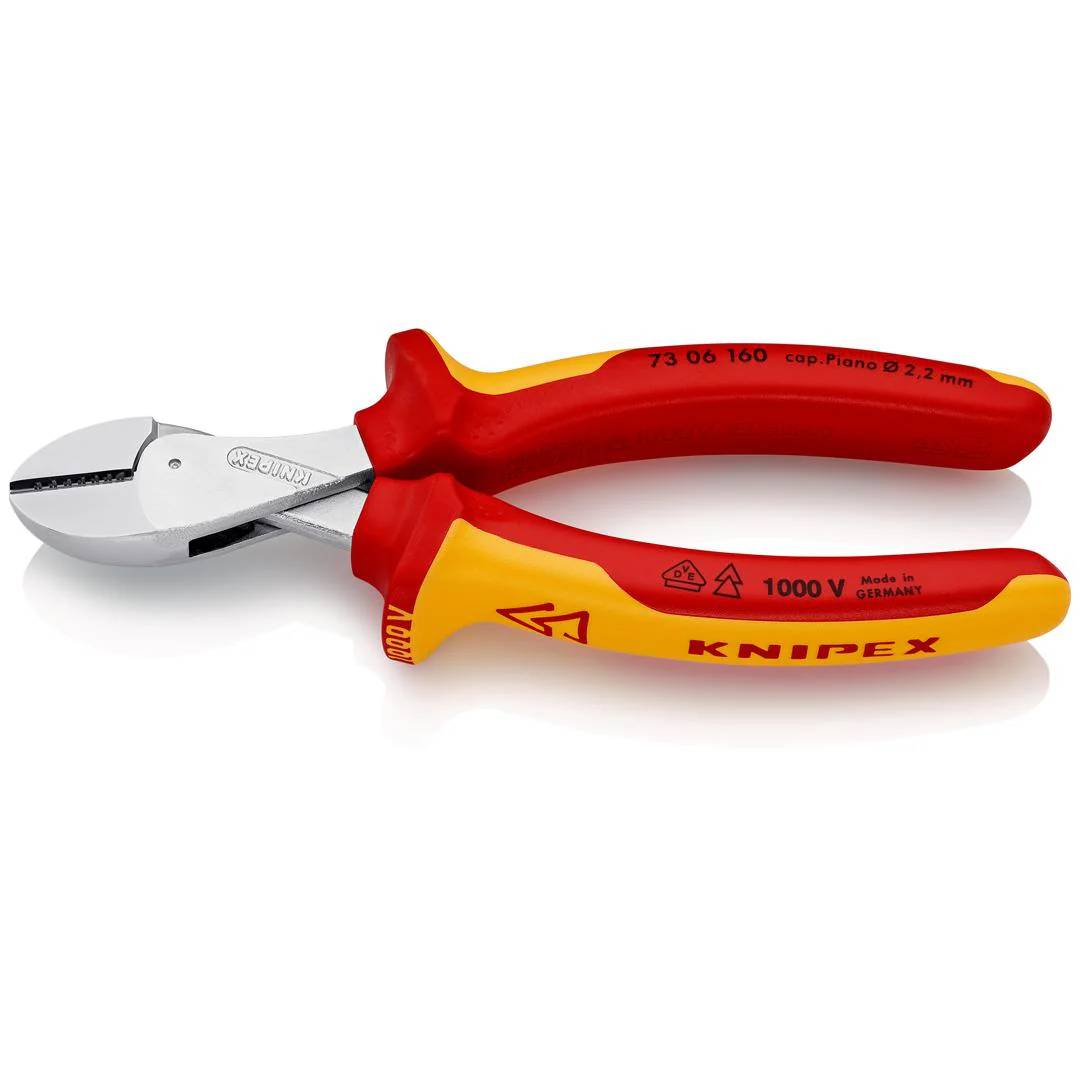

Knipex | VDE Plier Xcut Diagonal Cut - 160mm

73 06 160 SB KNIPEX X-Cut®
cuts finest strands as well as multi-core cables and piano wires. Powerful, light and universal. High cutting performance with minimum effort due to optimum coordination of the cutting edge angle and transmission ratio. Box-joint design: highest stability with low weight. Doubly supported joint axis for heavy duty. Large opening width for thicker cables. Cuts precisely, even through fine copper wires. Compact, low-weight construction. Universally usable, in the assembly, maintenance and production. 40% less force required compared with standard diagonal cutters of the same length. Precision cutting edges also induction-hardened (hardness approx. 62 HRC), for all wire types including piano wire.

Cutting capacities soft wire (diameter): Ø 4.8 mm

Cutting capacities medium hard wire (diameter): Ø 3.8 mm

Cutting capacities hard wire (diameter): Ø 2.7 mm

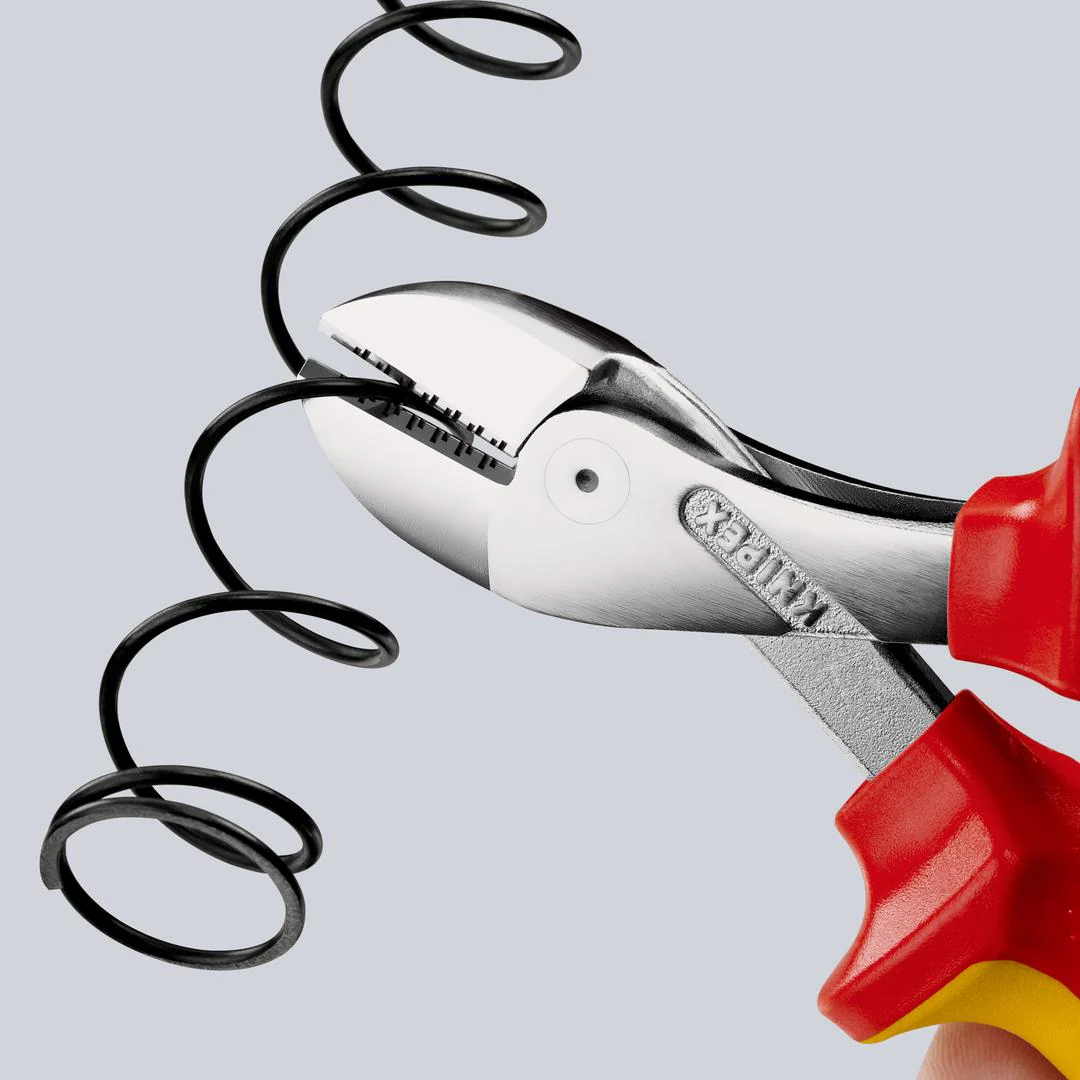

Cutting capacities piano wire (diameter): Ø 2.2 mm

Cutting capacity copper cable, multiple-stranded: Ø 12.0 mm

VDE tested: yes
