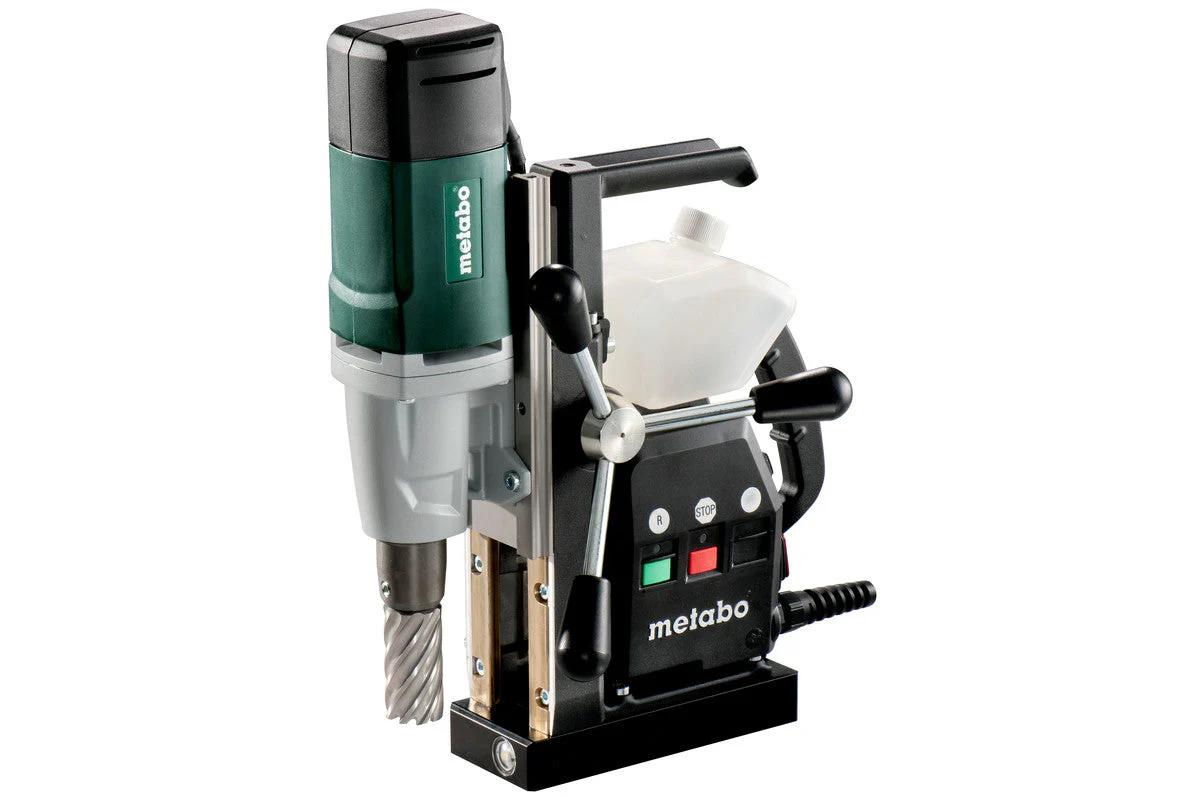

Metabo | Magnetic Core Drill Unit Mag 32

- Magnetic core drill with large depth of feed, therefore suitable for use of core drills, spiral drills and countersinks
- Magnetic base with high holding power permits working on vertical surfaces and overhead
- Robust Metabo marathon motor with internal wiring for long service life
- Integrated coolant container for easy to dose internal cooling of the core drill
- Bright LED light for easy alignment in poor light conditions
- Swarf protection can be fixed without tools and protects the user from metal shavings and tool contact
- Protective circuit starts motor only if the magnet is activated
- Restart protection: prevents unintentional start-up after power supply interruption
- Lockable slide for comfortable tool change
- Handle for easy carrying and lifting
- Resistant mains cable (5m) with rubber shroud
Included
- Ejector pin 75mm
- Safety strap
- Hexagon socket wrench SW4
- Swarf protection guard
- Transport case
Specifications
- Rated input power: 1000W
- Output power: 520W
- Max. drill-Ø with core drill: 32mm
- Max. drill-Ø with spiral drill: 13mm
- Maximum drilling depth: 50mm
- No-load speeds: 700rpm
- Speeds at rated load: 450rpm
- Bit retainer: Weldon shaft 19mm (3/4")
- Weight: 11.9kg
- Cable length: 5m
- Torque: 50Nm
- Max. depth of feed: 160mm
- Max. magnetic holding force: 12,250N
- Dimensions of the magnet base: 90 x 189mm
- Height carriage lowest position: 343mm
- Height carriage topmost position: 490mm
$1,050.10
Metabo | Magnetic Core Drill Unit Mag 32—
$1,050.10
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description

- Magnetic core drill with large depth of feed, therefore suitable for use of core drills, spiral drills and countersinks
- Magnetic base with high holding power permits working on vertical surfaces and overhead
- Robust Metabo marathon motor with internal wiring for long service life
- Integrated coolant container for easy to dose internal cooling of the core drill
- Bright LED light for easy alignment in poor light conditions
- Swarf protection can be fixed without tools and protects the user from metal shavings and tool contact
- Protective circuit starts motor only if the magnet is activated
- Restart protection: prevents unintentional start-up after power supply interruption
- Lockable slide for comfortable tool change
- Handle for easy carrying and lifting
- Resistant mains cable (5m) with rubber shroud
Included
- Ejector pin 75mm
- Safety strap
- Hexagon socket wrench SW4
- Swarf protection guard
- Transport case
Specifications
- Rated input power: 1000W
- Output power: 520W
- Max. drill-Ø with core drill: 32mm
- Max. drill-Ø with spiral drill: 13mm
- Maximum drilling depth: 50mm
- No-load speeds: 700rpm
- Speeds at rated load: 450rpm
- Bit retainer: Weldon shaft 19mm (3/4")
- Weight: 11.9kg
- Cable length: 5m
- Torque: 50Nm
- Max. depth of feed: 160mm
- Max. magnetic holding force: 12,250N
- Dimensions of the magnet base: 90 x 189mm
- Height carriage lowest position: 343mm
- Height carriage topmost position: 490mm
