Optimum | Metal Bandsaw S131GH

Metal band saw for easy sawing.

The OPTIMUM Metal Bandsaw 230V | S131GH has three speed stages for a broad choice of materials.

• OPTIMUM Metal Bandsaw 230V | S131GH is a metal band saw for easy sawing
• Mitre saws from -45° to +60° via slewable saw bow
• Protector switch for saw band saw belt off and for belt housing
• Separate EMERGENCY-STOP push button
• Low voltage electronics 24V
• Low-noise running
• Saw band guiding via ball bearing
• Three speed stages for a broad choice of materials
• Micro switch for automatic limit stop

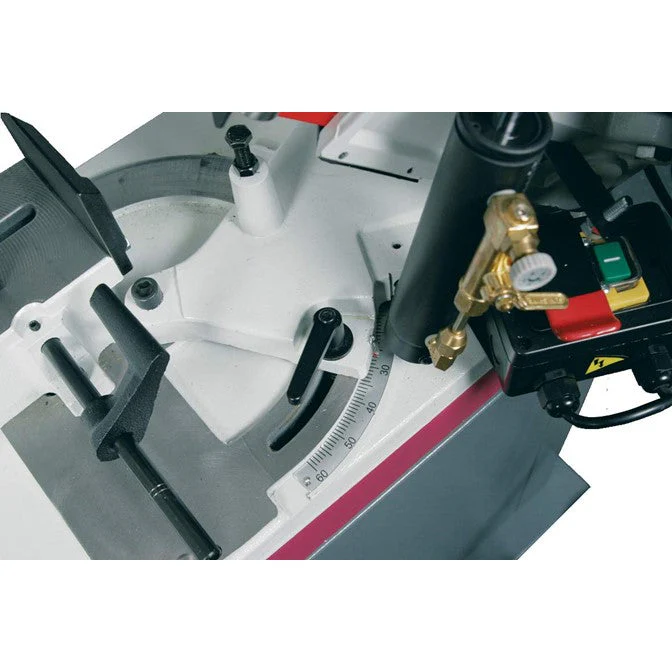

• Scale good read for angle adjustment
• With high-grade bimetallic saw band supplied as standard
• Saw belt tension at the front adjustable via handwheel
• Adjustable material stop for series productions
• Quick-action vice for rapid workpiece clamping
• Switch for saw band saw belt off and for belt housing

Specifications

Dimensions (L x W x H)	965 x 498 x 978mm
Max. length	1085mm
Max. height	1300mm
Net weight	78kg
Drive motor output	1,1kW
Supply voltage	230V
Phase(s)	Single
Current type	~
Mains frequency	50Hz
Clamping ranges 0°	Round (full material) – 128mm Quadratic (full material) – 145mm Rectangle horizontal (full material) – 100 x 145mm
Clamping ranges +45°	Round (full material) – 90mm Quadratic (full material) – 100mm Rectangle horizontal – 70 x 85mm
Clamping ranges +60°	Round (full material) – 45mm Quadrat (full material) – 45mm Rectangle horizontal – 45 x 56mm
Saw band speed(s)	22/31/55m/min
Saw band length	1638mm
Saw band width	13mm
Saw band thickness	0,65mm
Cutting angle	-45 – 60º
Lifting the saw bow	Manual

Saw Bow

• Grey cast-iron
• Slewable on both sides from -45° to +60°
