Pro-Tech | Router Bit Full Bead Double Bearing 1" X 1/2" Radius 3/16" 1/4" Shank

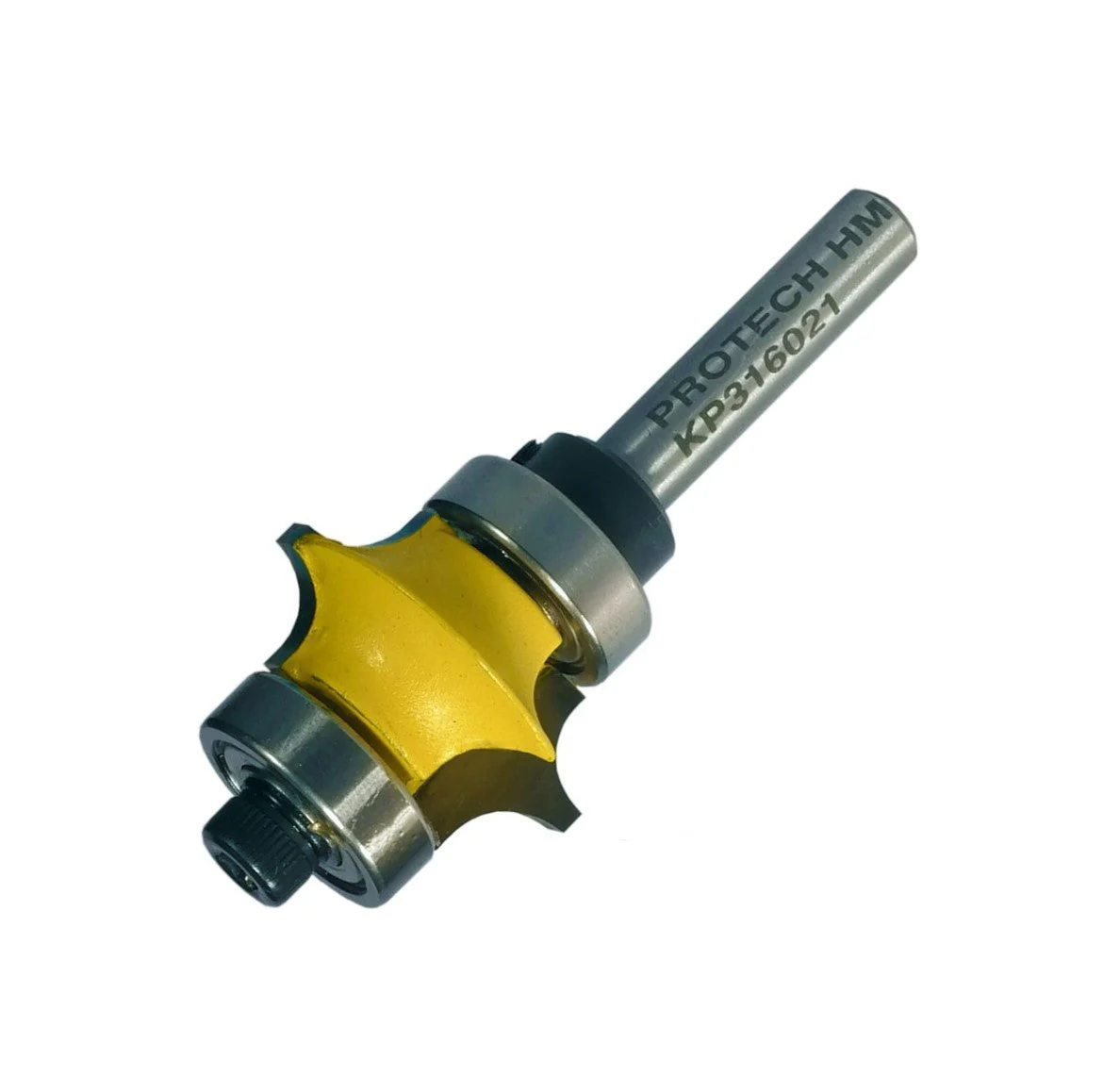

Full Bead Double Bearing Router Bit
This router bit shape is also referred to as the leaf corner profile. In one pass, this bit forms a round-edge groove near the corner of the workpiece. A second pass on the adjoining face yields a delicate leaf shaped corner bead. More profiles can be created using this router bit using some imagination.
- The two bearings allows for both router table and freehand use
- Round edge groove
- Leaf shaped corner bead
- Corner round profile with 4,80mm radius
This router bit has a 6,35mm shank (shaft) that will fit most small or large routers. Please ensure that you select a router bit with a shank (shaft) size that will fit into your router collet.
Specifications
| Part No. | Shank dia. | Cutting width | Cutting Height | Radius (r) |
| KP316021 | 1/4" | 1" | 1/2" | 3/16" |
| 6,35mm | 25,4mm | 12,7mm | 4,8mm |
