SawStop | Jobsite Saw Pro 250mm with Mobile Cart Assembly

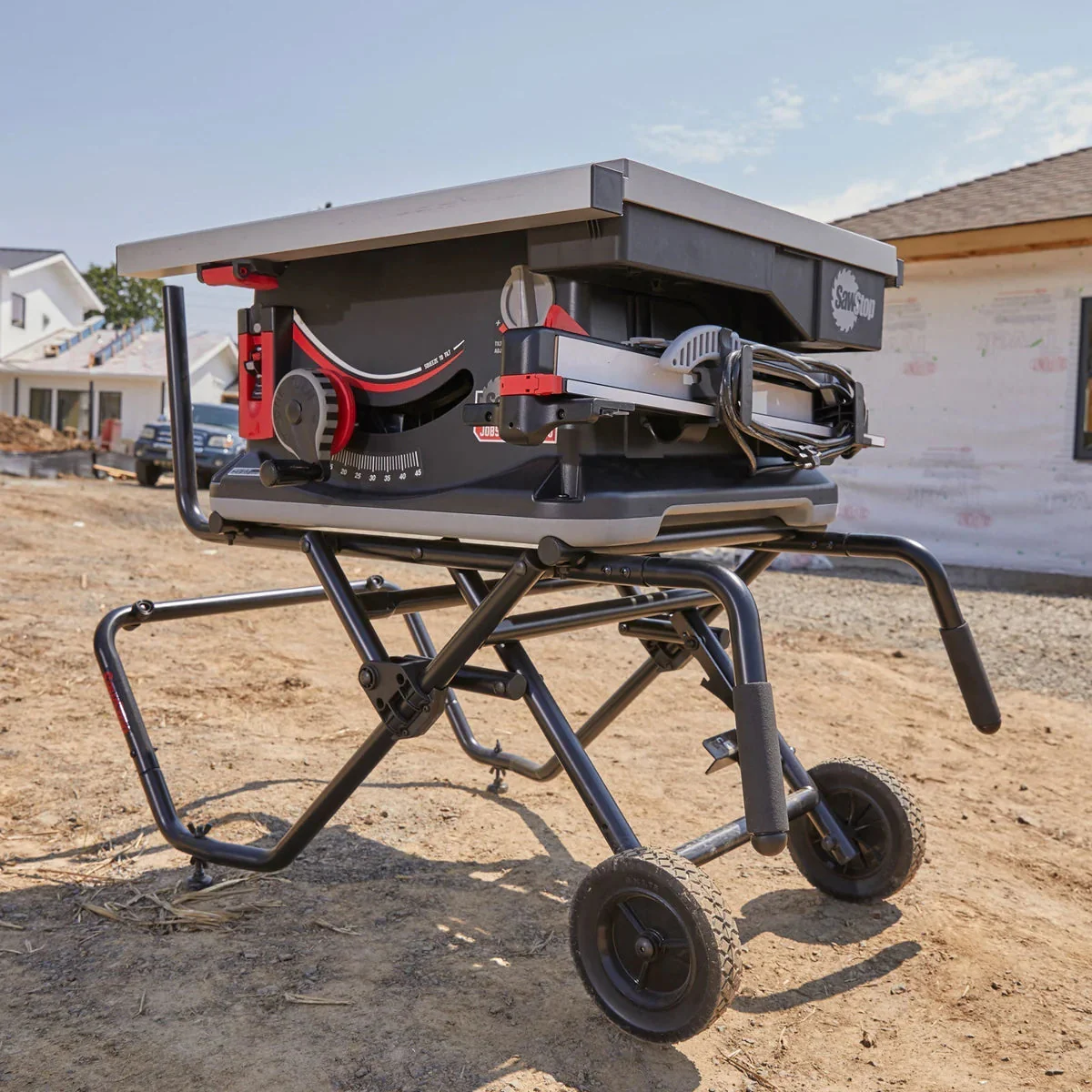

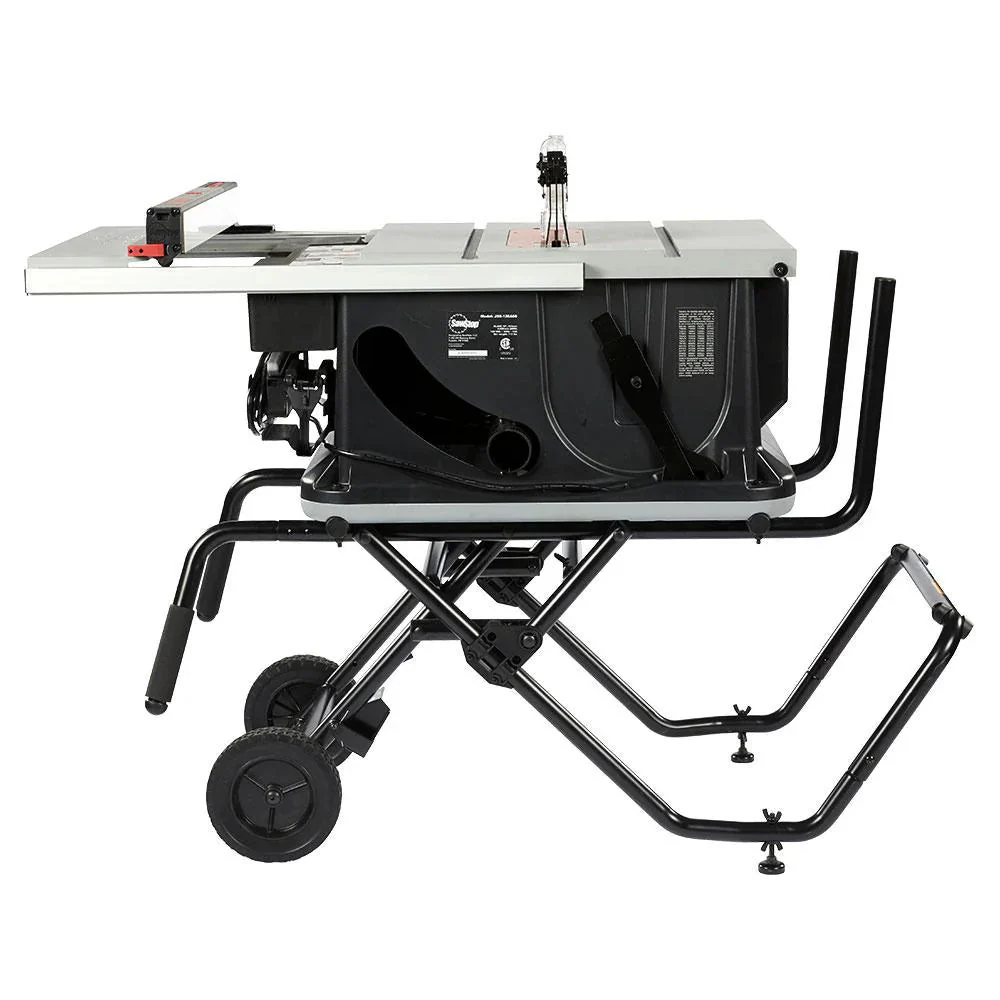

250mm SawStop Jobsite Saw Pro with Mobile Cart
The new & improved SawStop Jobsite Saw Pro unites SawStop safety and pioneering innovation with compact portability. For the first time, the promise of SawStop safety, quality and peace of mind can travel with you wherever you go.
- One turn elevation
- QuickTilt
- Micro Adjust

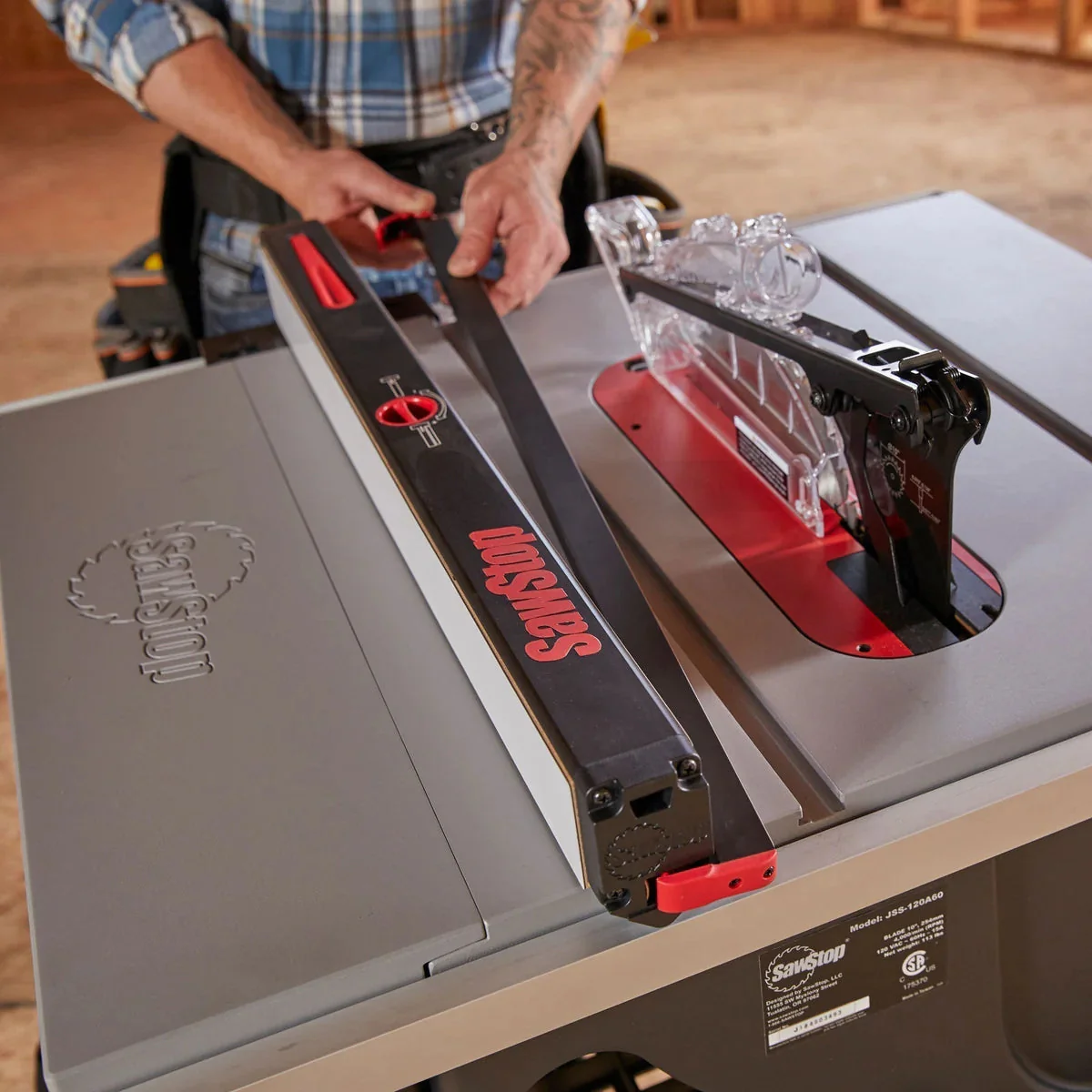

- T-Style Fence with ErgoLock
- Fence Holster
- Low Profile Blade Guard
- Pedal Release
- Large Wheels
- Control Box
- Tool-Free Zero-Clearance Insert
- Accessory Storage Drawer
- Extension Clamp
Included
-
Collapsible Rolling Cart x1
-
Miter Gauge x1
-
JSS Micro Blade Guard x1
-
Riving Knife x1
-
Blade Wrenches x2
-
Push Stick x1
-
10” Blade x1
-
Standard Brake Cartridge x1
-
User’s Guide x1
-
Assembly Instructions Poster x1
-
Hardware Pack x1
-
3mm Hex Key x1
-
4mm Hex Key x1
- 5mm Hex Key x1
Specifications
| Motor Configuration |
230V AC, 50Hz, Universal
|
| Cord Length: | 3m |
| Sold and Shipped as Full Set Only with Cart : |
(no Cartless Option Available)
|
| Motor Continuous HP: | 1.5HP |
| Motor Peak HP: | 4HP |
| Saw Dimensions without Cart (Body only): |
806.5mm W x 730mm D x 394mm H
|
| Saw Dimensions with Open Cart(ready to use): |
1219mm W x 736.5mm D x 914.5mm H
|
| Saw Dimensions with Closed Cart (on End/stored position): |
673mm W x 736mm D x 1143mm H
|
| Table Dimensions (Extended): |
1101mm x 625mm
|
| Shipping Dimensions: |
813mm W x 1092mm D x 660.5mm H
|
| Shipping Weight (with Cart): | 62kg |
| Weight (Saw Only): | 38kg |
| Weight (with Cart): | 51kg |
| Blade Diameter | 10" / 254mm |
| Dado Diameter: | 8" / 203mm |
| Dado Max. Width: | 20mm |
| Bevel Angle Range: | -1 to 46 |
| Max. Depth of Cut, Blade at 0º: | 79mm |
| Max. Depth of Cut, Blade at 45º: | 54mm |
| Max. Rip Right of Blade (Extended): | 647mm |
| Max. Rip Left of Blade: | 247mm |
| Blade Tilt: | Left |
| Table in Front of Blade (Max Elev): | 200mm |
| Table Behind Blade (Max Elev): | 187.5mm |
| Miter Slots T-shaped Dimensions: |
19.15mm W x 10.5mm D; "T" 24.25mm W x 4mm THK
|
| Table Flatness Measured Diagonally | 0.84mm |
| Dust Collection Port Diameter: | 63.5mm |
| Active Dust Collection Blade Guard: |
polycarbonate, extends 25.4mm right of blade
|
| Restart Protection: | Yes |
| No Load RPM: | 4200 |
